Decked CargoGlideXL Sliding Truck Bed Tray - 2200 lb Capacity – 100% Extension
Full access, maximum strength, made for serious haulers.

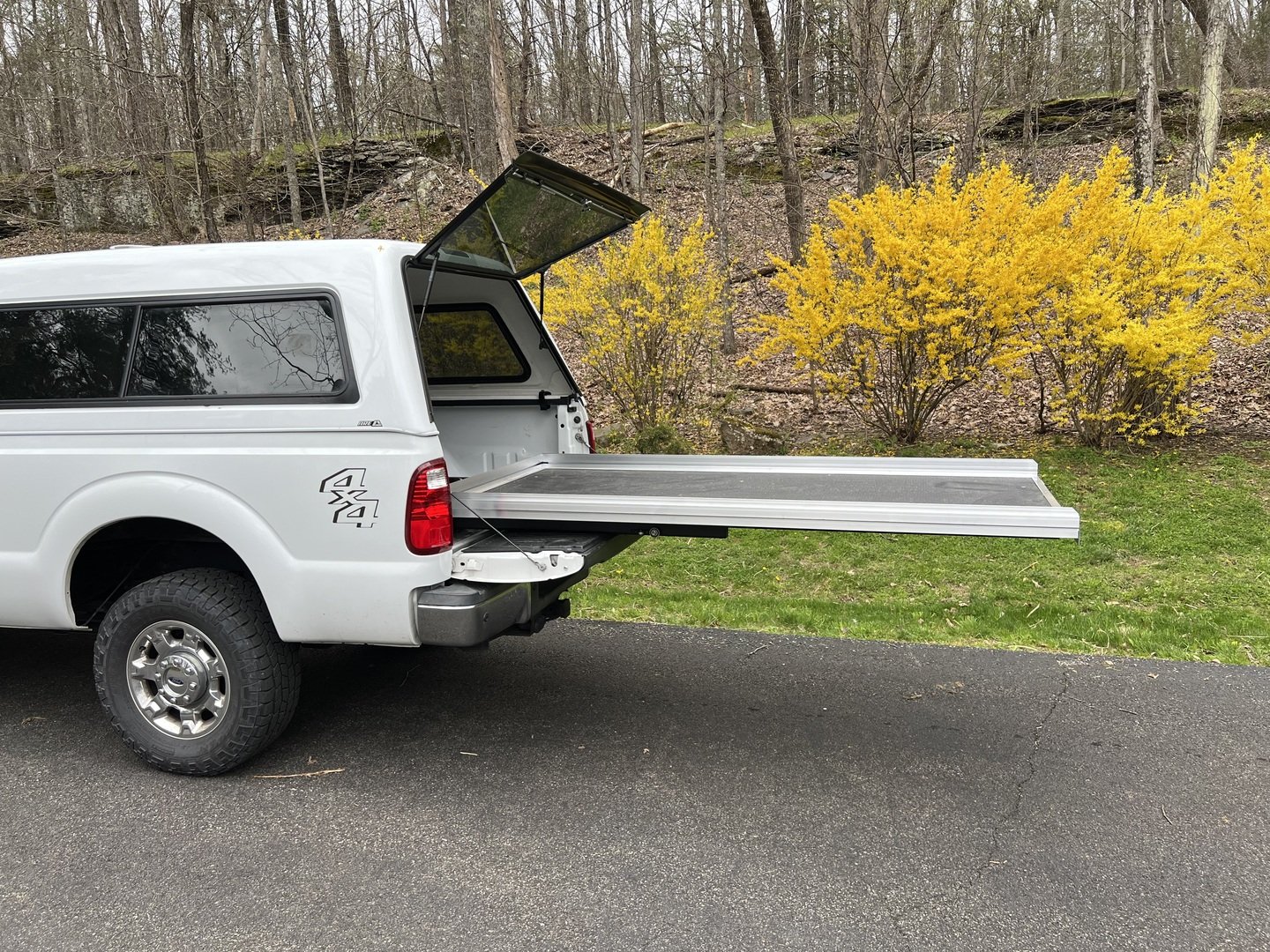

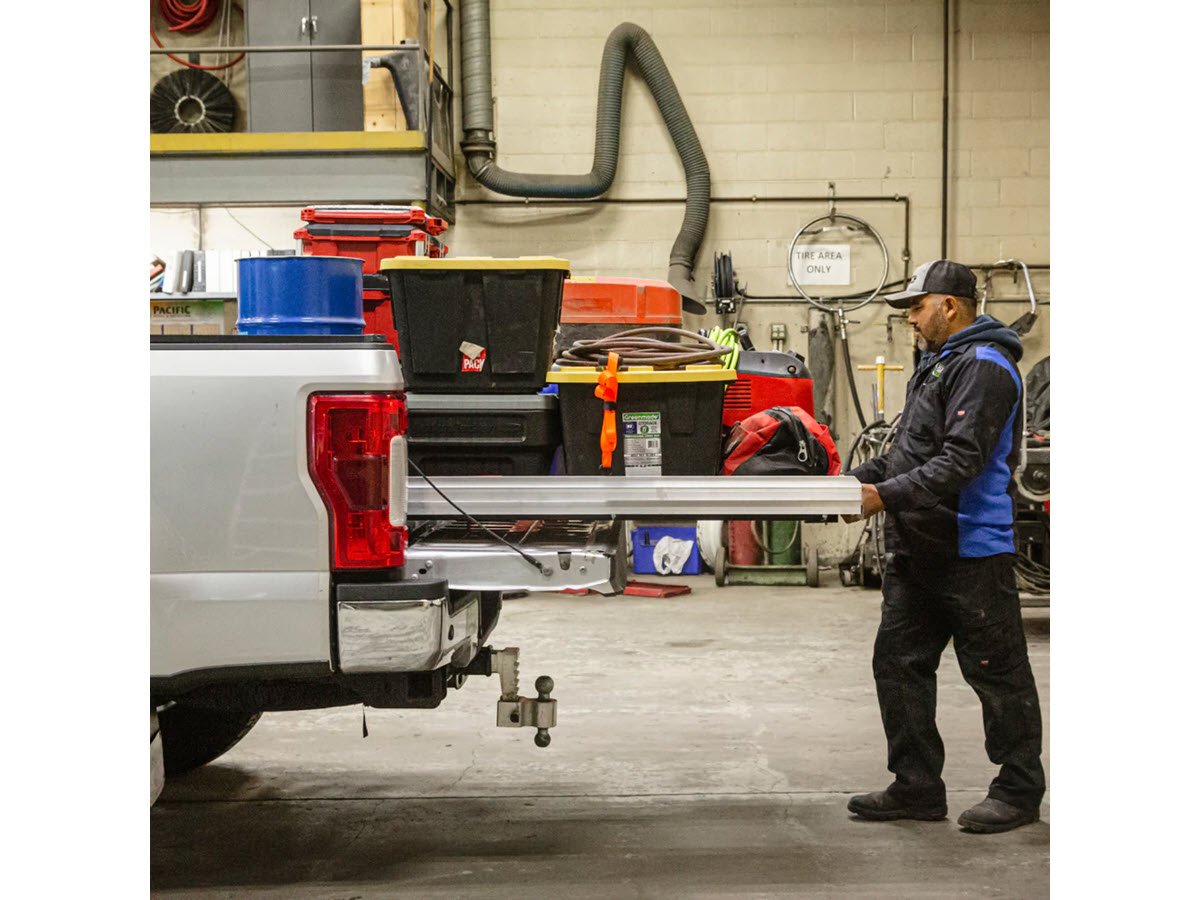

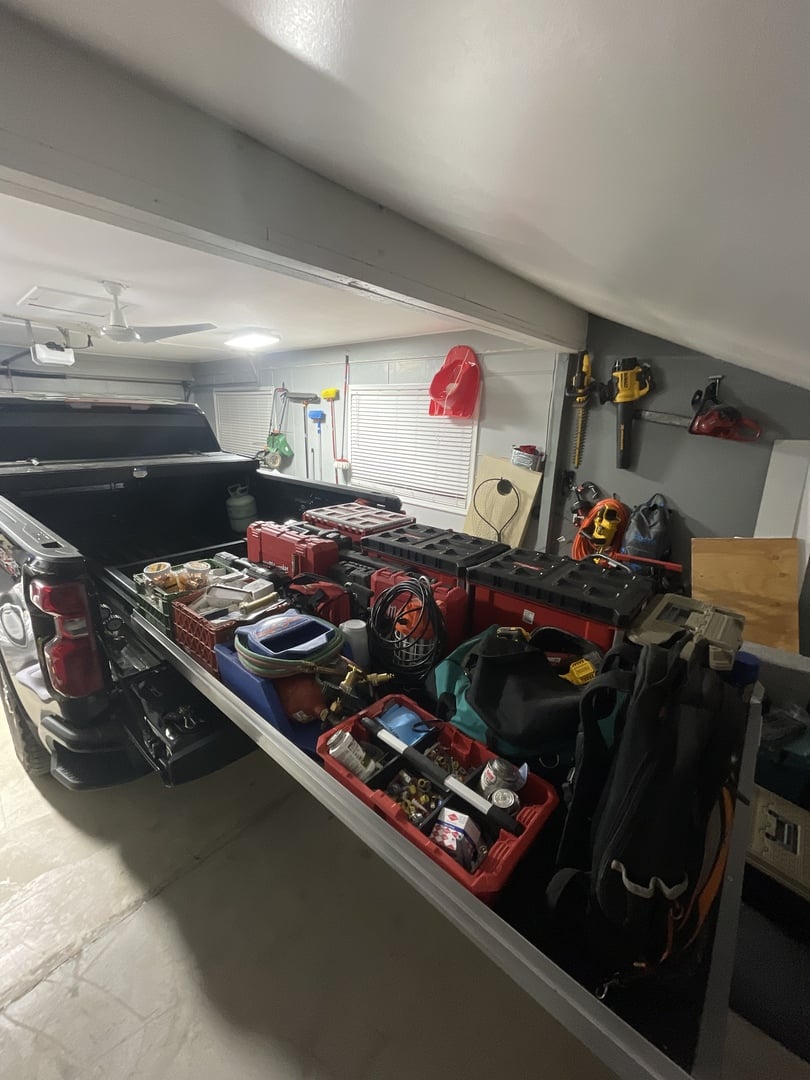

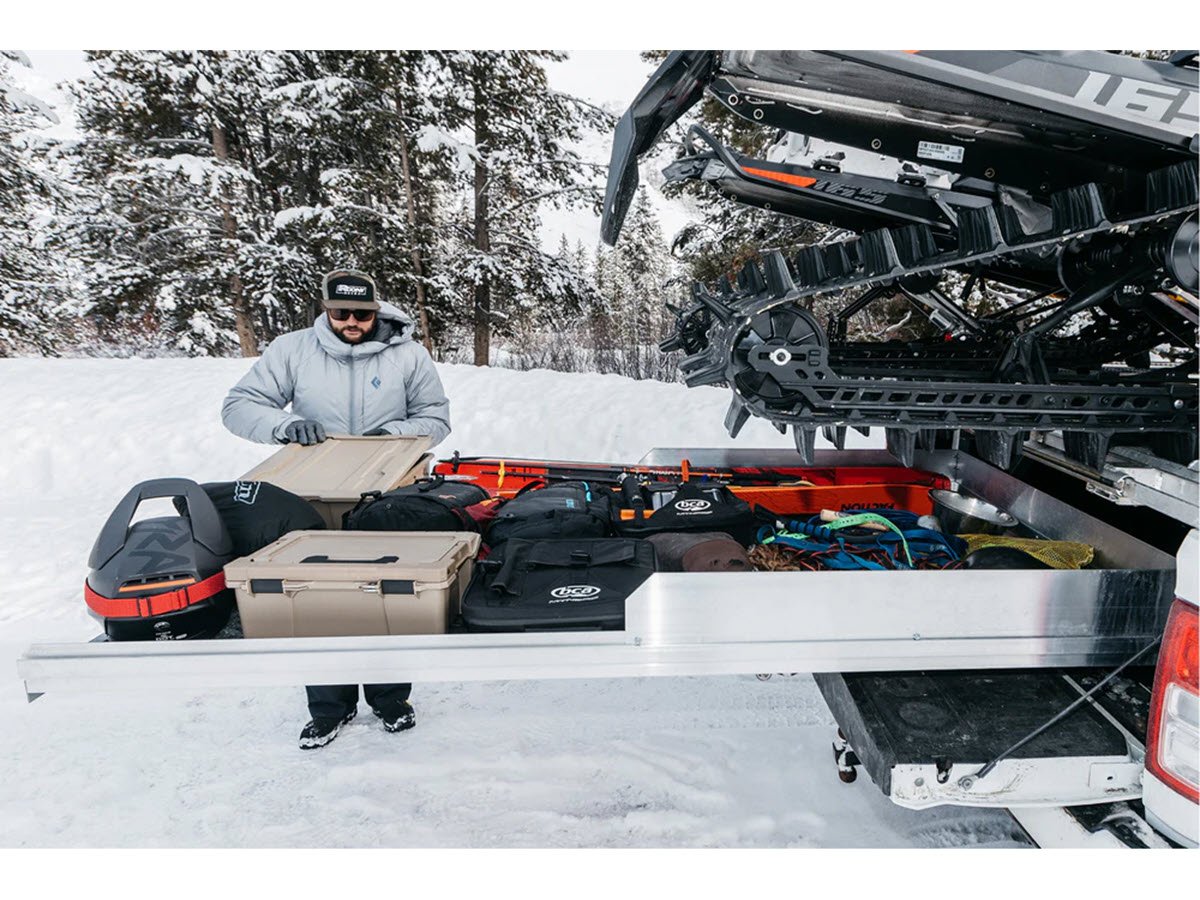

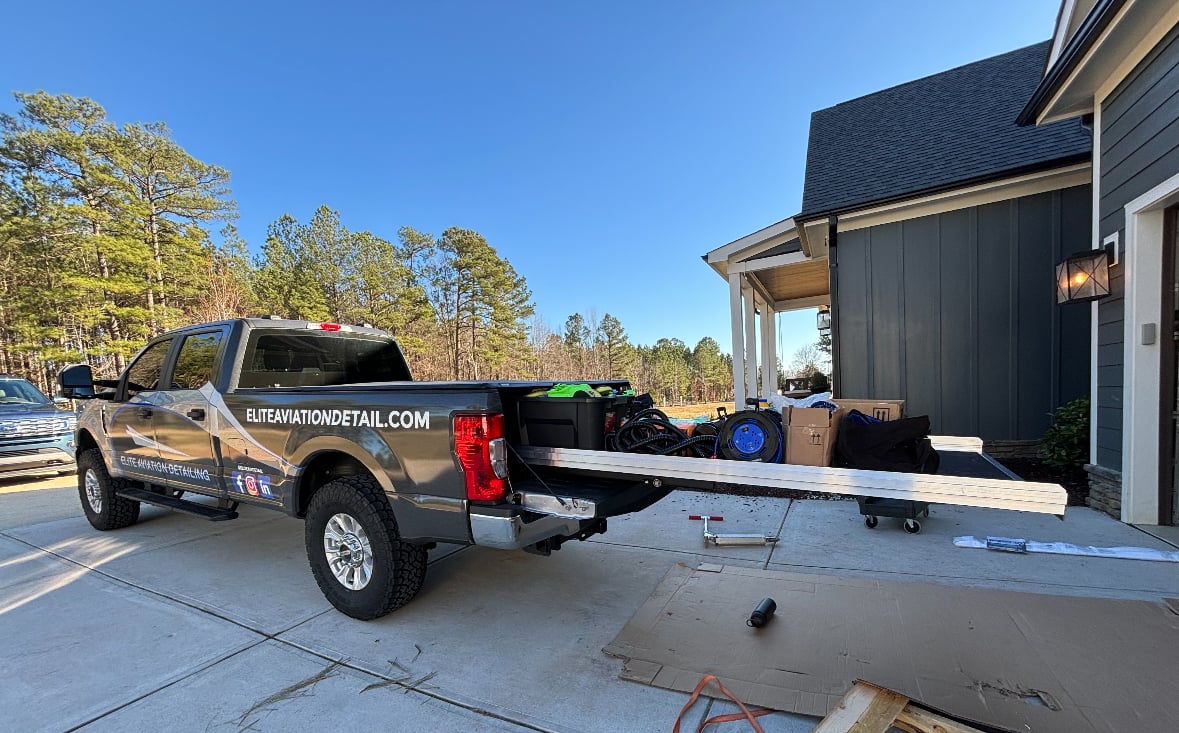

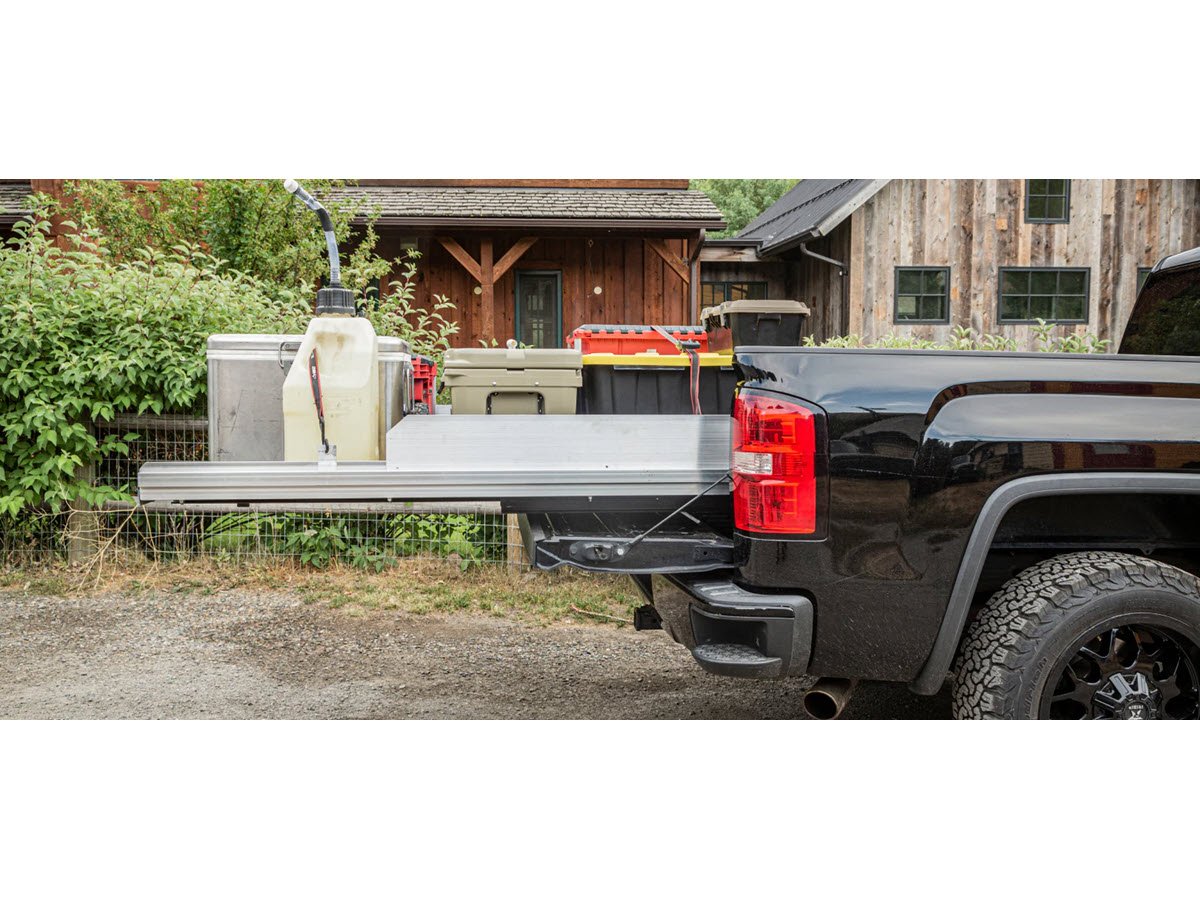

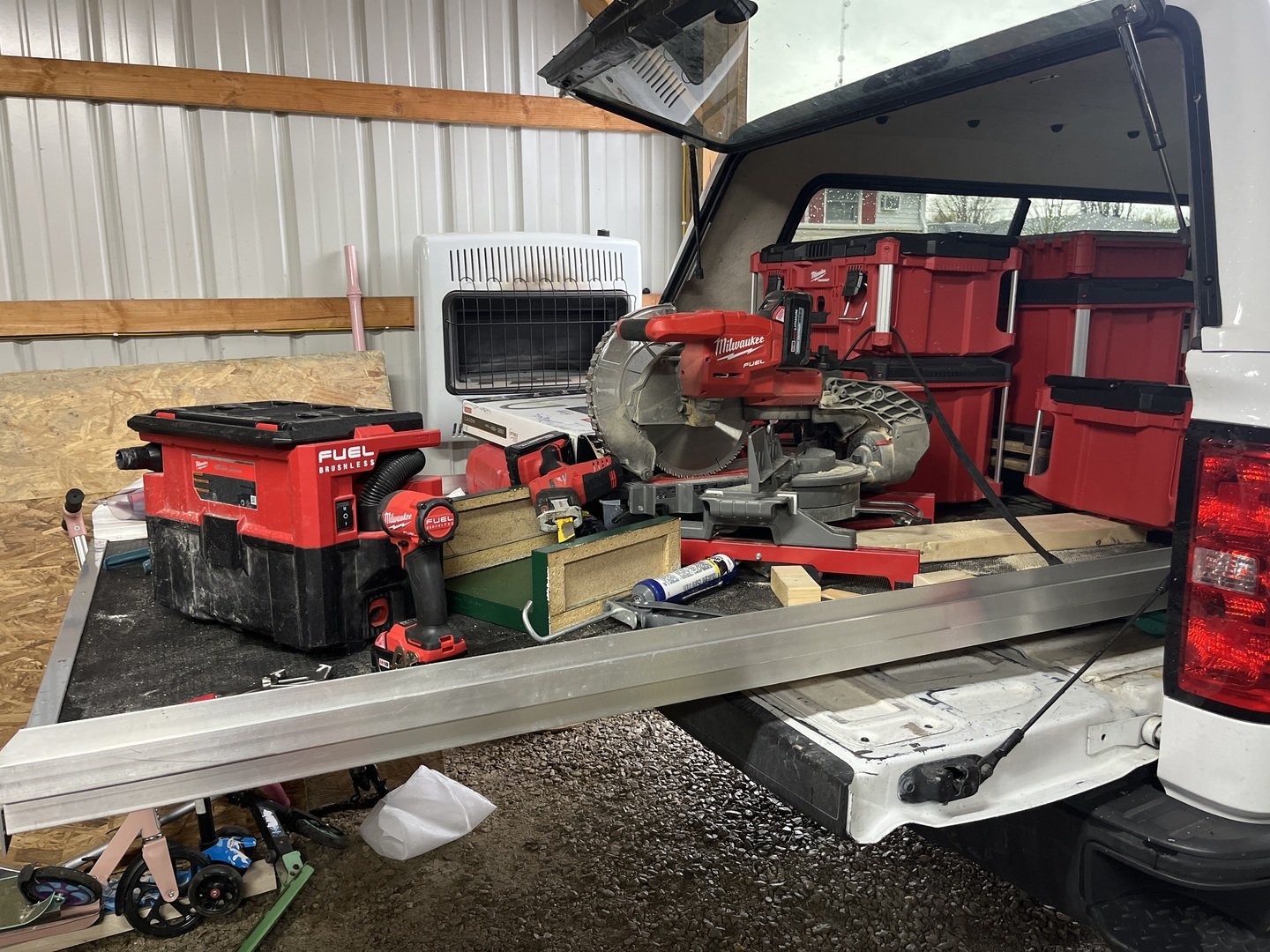

If you're tired of crawling into your truck bed just to grab a tool, cooler, or gear bag, the Decked CargoGlide 2200 with 100% extension is exactly what you need. Designed for hard-working truck owners and gear-hauling adventurers alike, this sliding truck bed tray glides your entire load out to you—all the way to the end of the bed—for maximum accessibility and convenience. With a beefy 2,200 lb capacity, it’s built to handle whatever you throw at it, from heavy tools and equipment to camping gear, supplies, and more.
This sliding tray is a perfect fit for anyone looking to optimize their truck bed storage solution without compromising strength, space, or style. Made in the USA from premium materials like robotically welded powder-coated steel, marine-grade plywood, and a thermoplastic topsheet, the CargoGlide is built to perform in all conditions. Plus, it comes preassembled and installs in 30–45 minutes, making it an easy upgrade for your rig—no matter your experience level.
Key Features

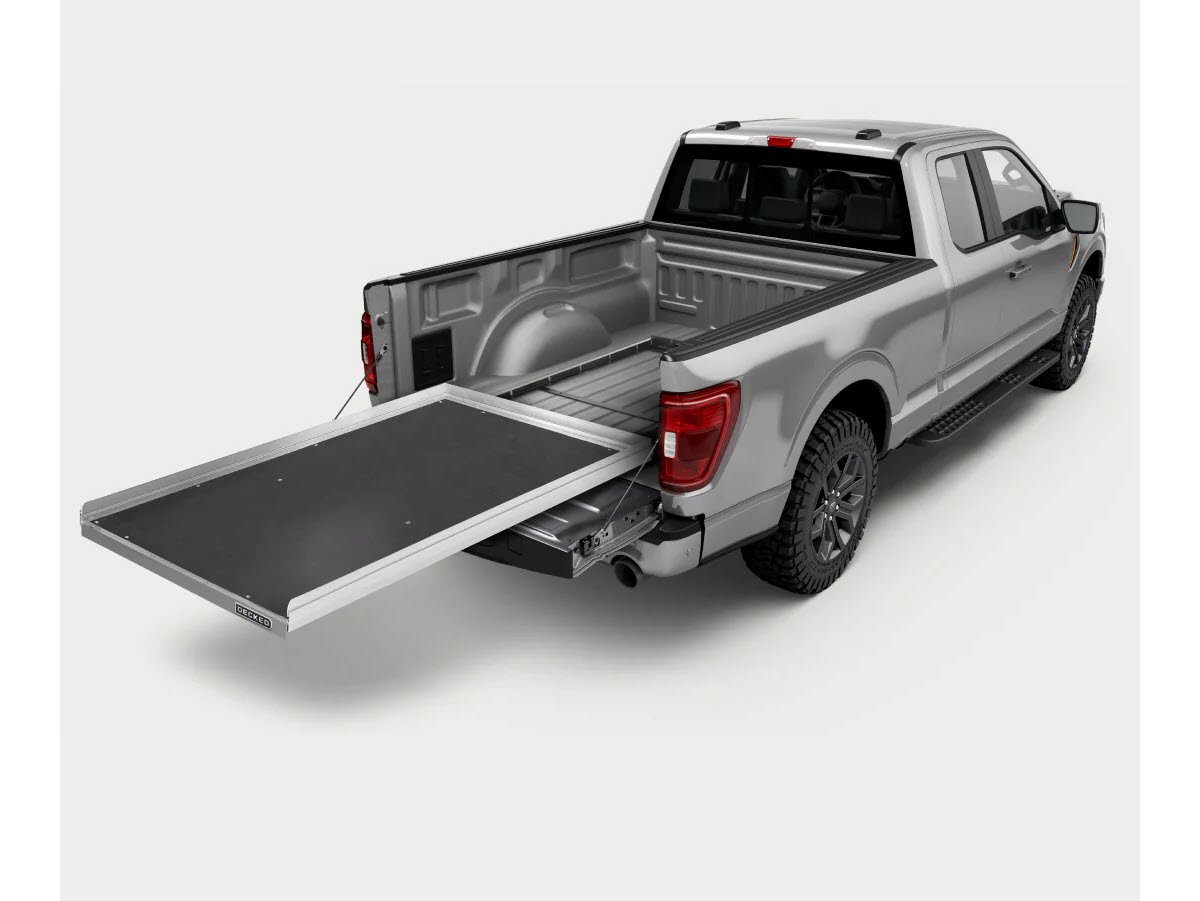

- 100% Tray Extension for Full Access - No more crawling or reaching. The tray extends completely, so every inch of your truck bed is easy to reach.
- 2,200 lb Payload Capacity - Designed for heavy-duty use, the CargoGlide can handle jobsite gear, tools, and other serious loads with confidence.
- Industrial-Grade, Weatherproof Build - Constructed with powder-coated steel, marine-grade plywood, and a UV- and impact-resistant thermoplastic topsheet for all-weather durability.
- Easy DIY Installation - Comes preassembled and installs in 30–45 minutes with basic tools. No advanced skills needed—just follow the included instructions.
Designed for Real-World Utility
This isn’t just another truck bed tray—it’s a professional-grade vehicle storage solution. With 14 double roller bearings, 12 side thrust bearings, and 2 cam follower bearings (for a total of 28 precision contact points), this tray glides out smooth and stable even under heavy loads. The auto-stop handle adds a level of safety and control, preventing accidental roll-outs when you’re parked on an incline or loading on uneven terrain.

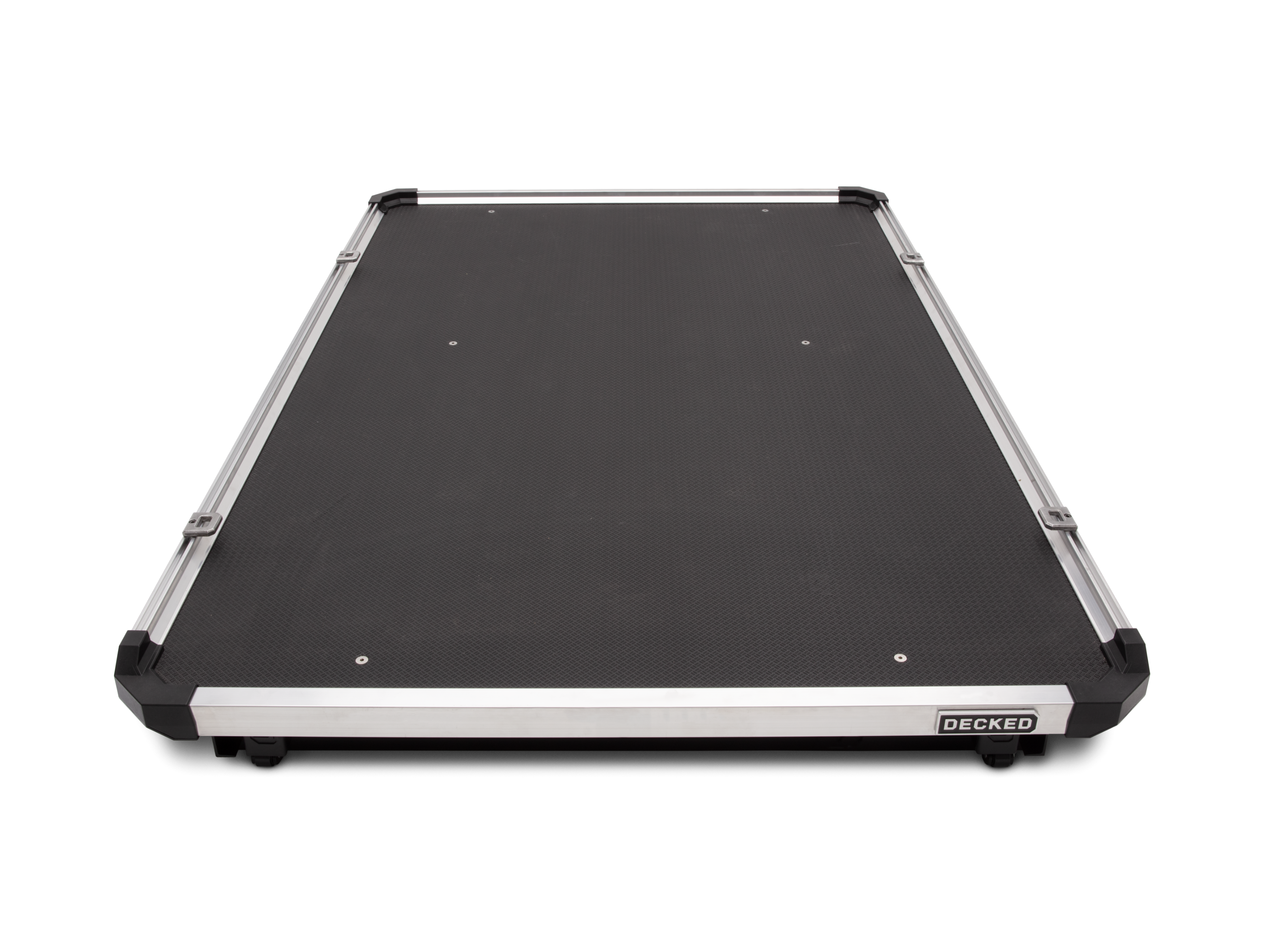

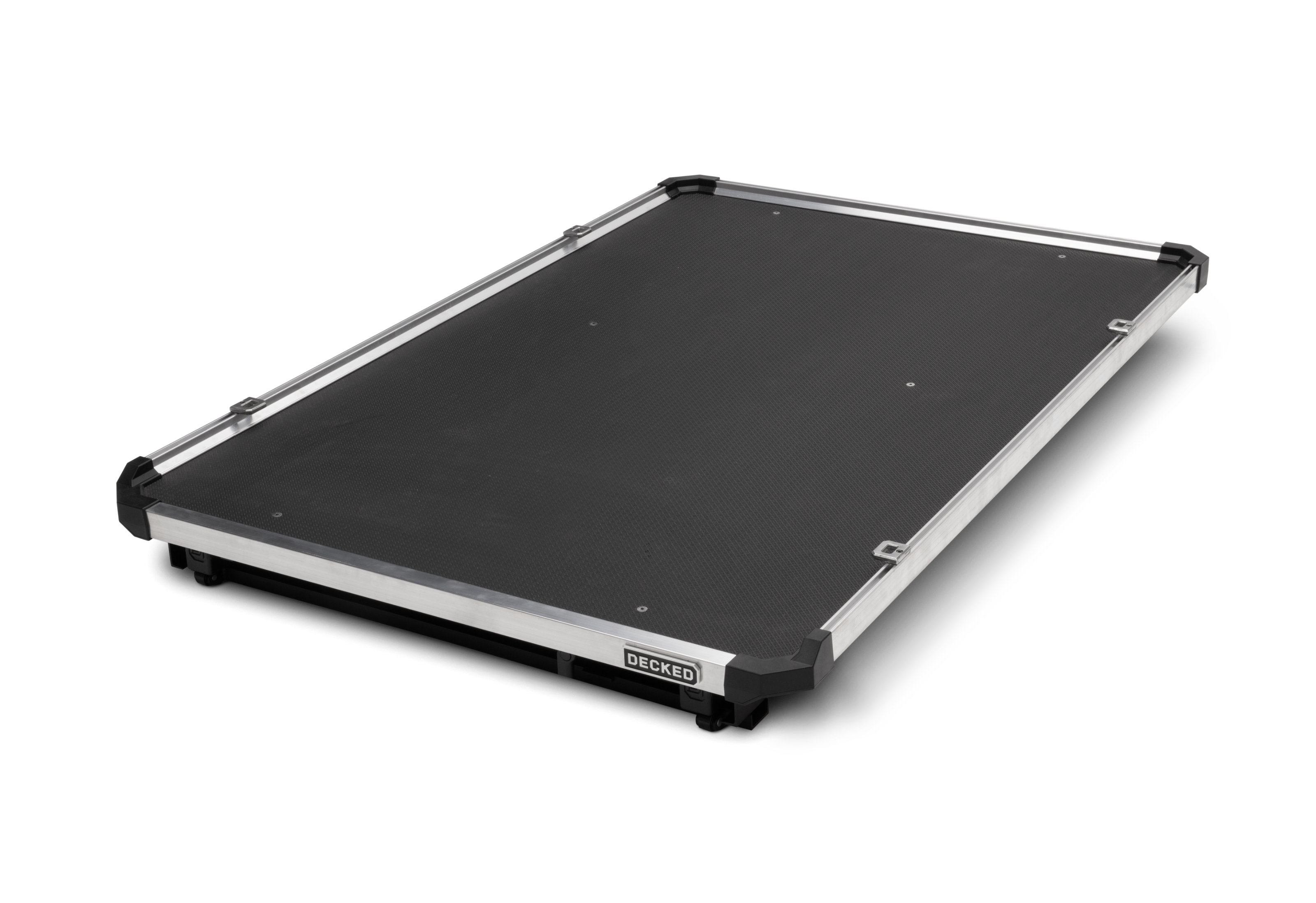

The ¾” marine-grade plywood deck topped with a rugged thermoplastic sheet offers a resilient, weatherproof surface that resists rot, corrosion, and impact damage. Plus, the integrated vertical T-slots and included D-ring tie-downs make it easy to secure gear of all shapes and sizes—even with the tray fully loaded.
Compatibility & Tailgate Fitment
Compatible With:
- Dexked Drawer System (with CargoGlide Mounting Brackets)
- Spray-in Bed Liners
Not Compatible With:
- Stepside / Flareside Beds
- Drop-in Plastic Bed Liners or BedRug
- Service Body Trucks
- Gooseneck or 5th Wheel Hitch Beds
- DECKED Tool Boxes
- RamBox-equipped Beds
- GMC CarbonPro Beds
- Legacy DECKED Drawer Systems

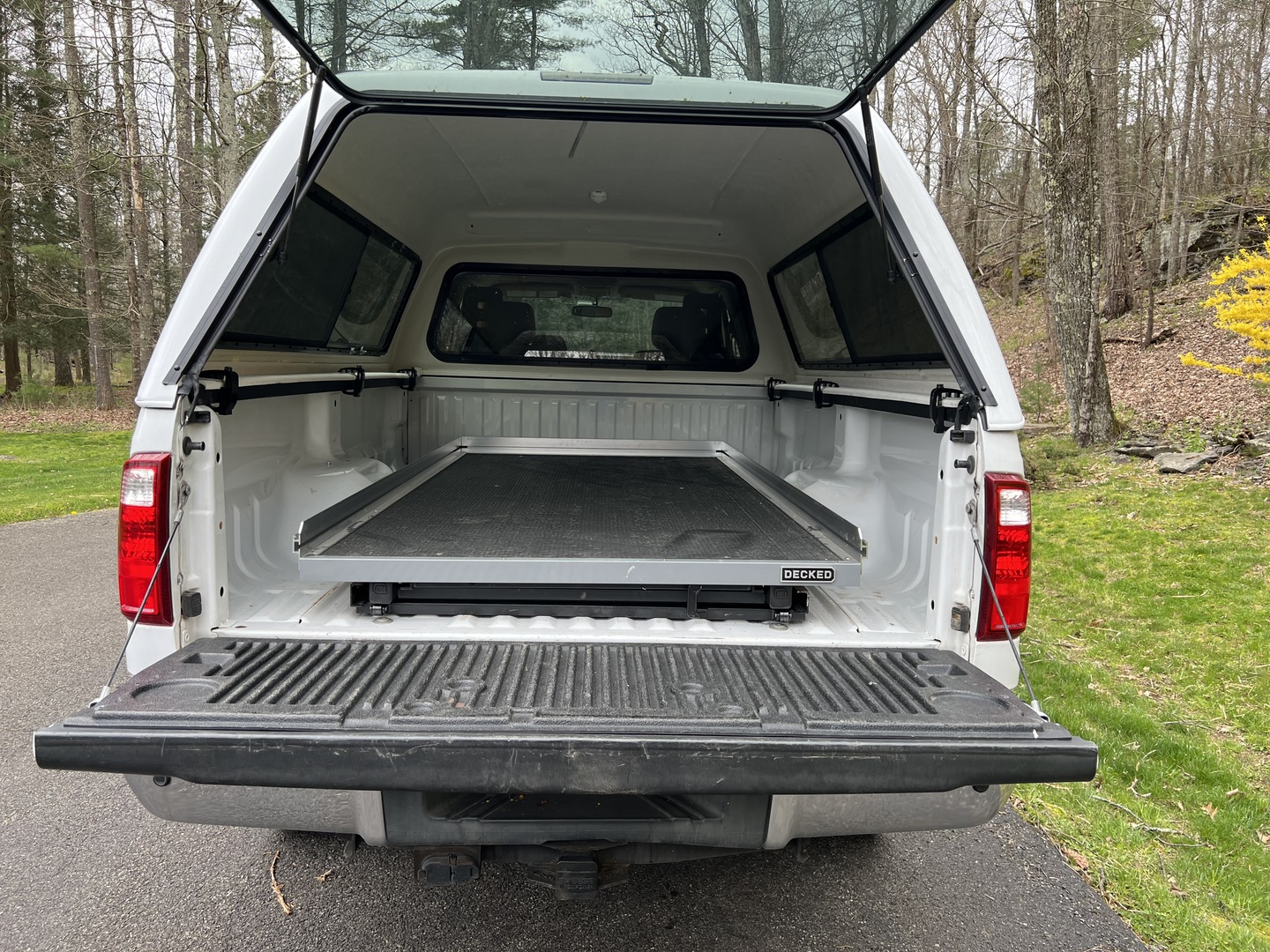

If your tailgate doesn’t lay flat when open, make sure to use the adjustable tailgate clearance feature included in all CargoGlide models to ensure proper tray operation.
Specifications
System Dimensions:
- Width: 48.7"
- Length: 62.7"
- Height: 5.2"
Tray Dimensions:
- Width: 45.3"
- Length: 59.3"
- Height: 3.9"
Weight: 128 lbs
Extension: 100%
Payload Capacity: 2,200 lbs
Materials & Build:
- Powder-Coated American Steel Frame
- ¾” Marine-Type Plywood Deck
- Thermoplastic Topsheet (UV-Resistant & Impact-Proof)
- Extruded Aluminum Sidewalls
- Cast Aluminum Auto-Stop Handle

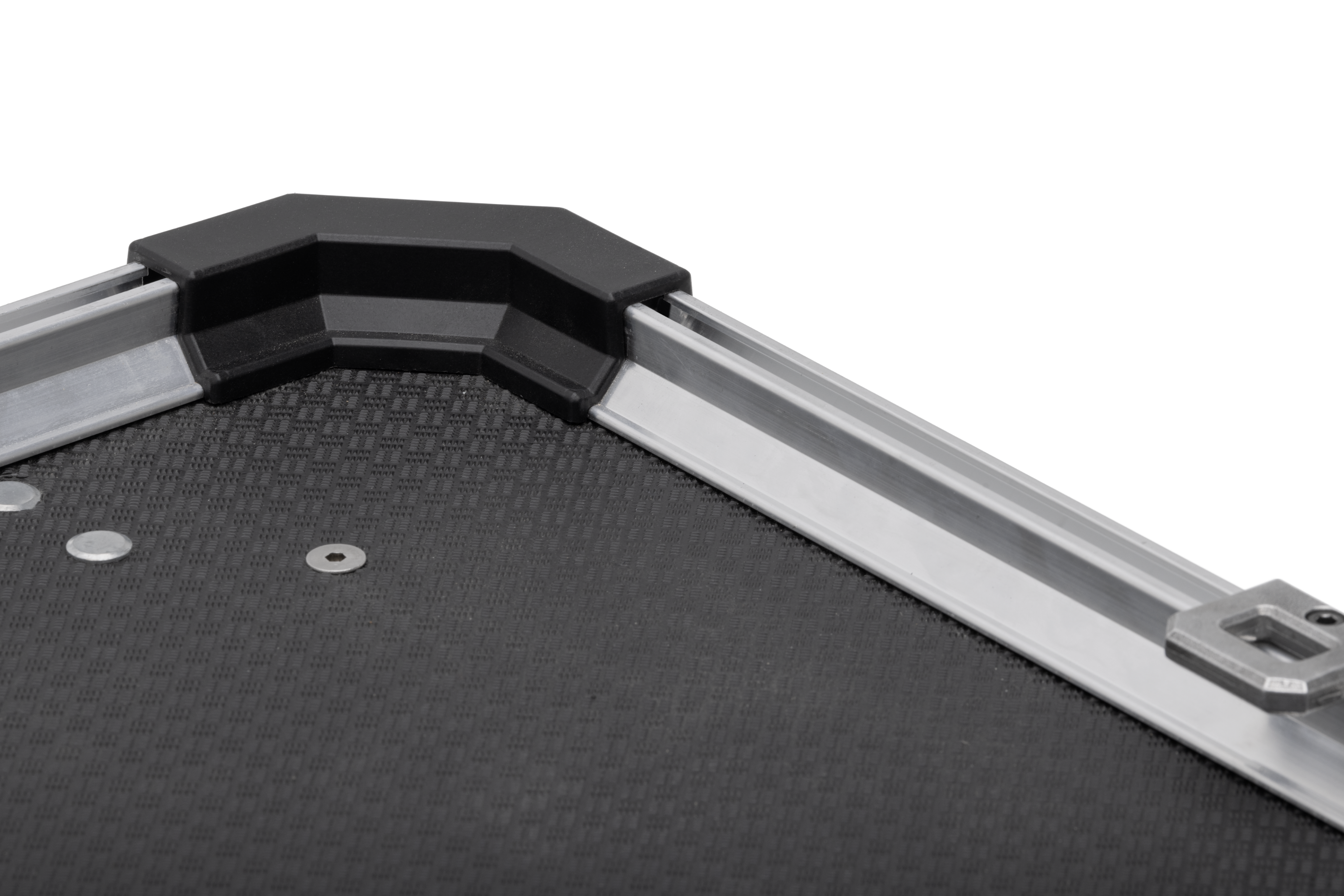

- Rugged Polymer Corner Guards
Bearings:
- 14 Double Roller Bearings (Mid-Frame, 3203zz)
- 12 Side Thrust Bearings (Mid-Frame, 1601)
- 2 Cam Follower Bearings (Tailgate End, 1.25" CYR)
What’s Included
- Decked CargoGlideXL Sliding Truck Bed Tray - 2200 lb Capacity
- 4 Integrated D-Ring Tie-Downs
- Mounting Hardware
- Installation Instructions
Terms to Know
- Payload: The total weight the tray can safely support (2,200 lbs in this model).
- 100% Extension: The tray slides all the way out of the truck bed, allowing full access to everything on it—no more stretching or unloading.
- Marine-Grade Plywood: High-strength wood designed to resist water, warping, and rot—ideal for outdoor, high-moisture environments.
- Thermoplastic Topsheet: A tough, weather-resistant surface that protects the tray deck from impact, wear, and UV damage.
The Decked CargoGlide 2200 – 100% Extension is the ultimate blend of strength, smooth operation, and smart design. It’s built to take a beating, engineered to perform, and designed to make your life easier—whether you're hauling gear for work, play, or everyday life. Add in quick installation, rock-solid build quality, and seamless compatibility with the DECKED Drawer System, and you've got one of the best automotive accessories available for boosting truck bed utility. Say goodbye to the crawl-and-reach struggle—and hello to easy, full-access hauling.
