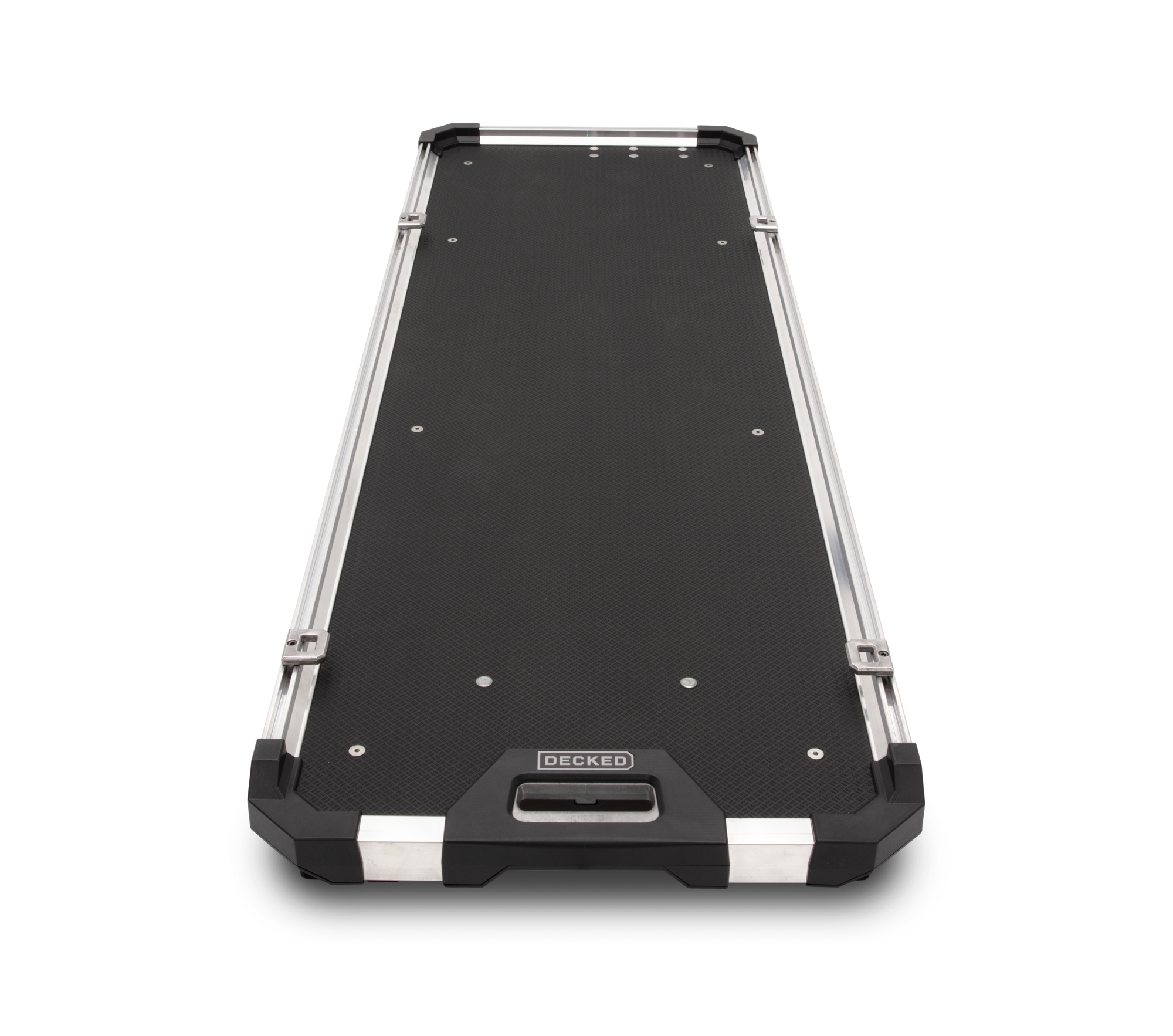

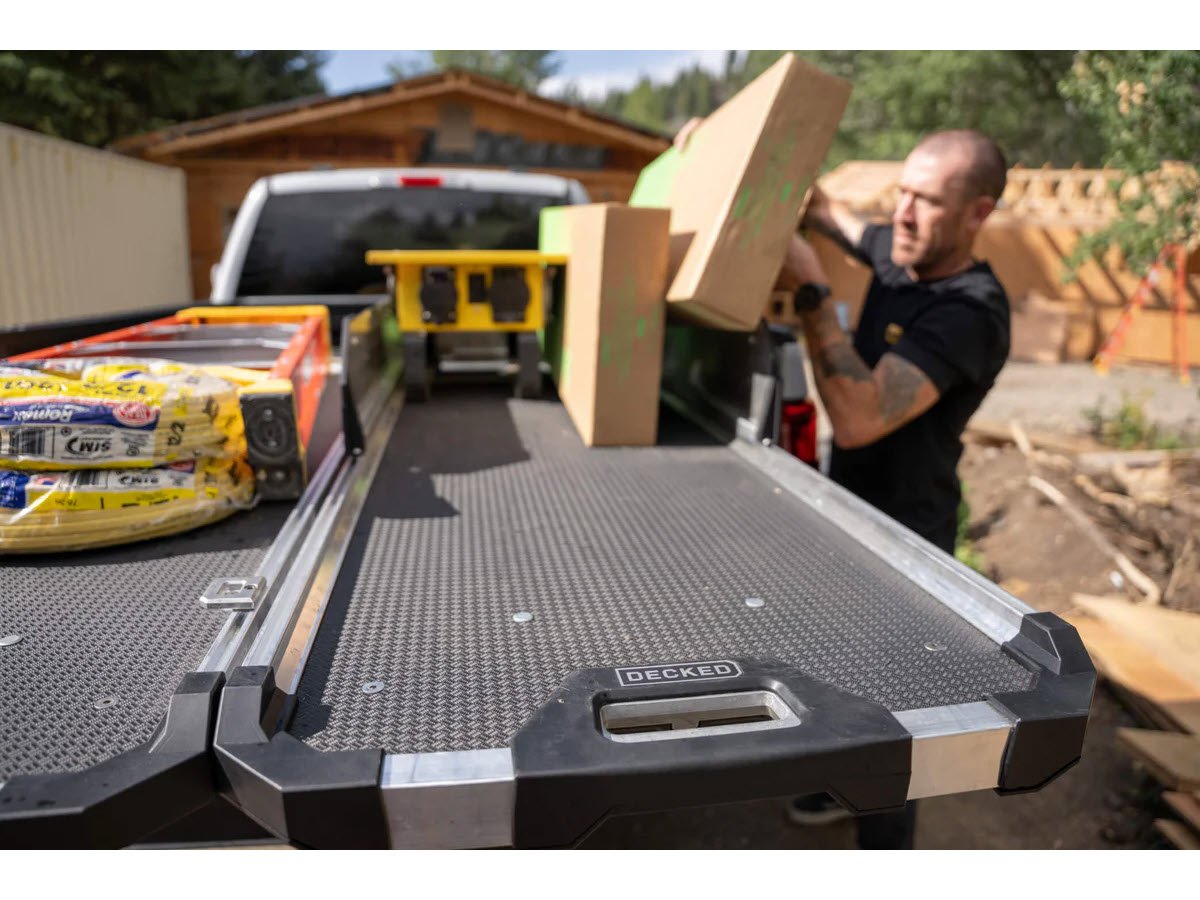

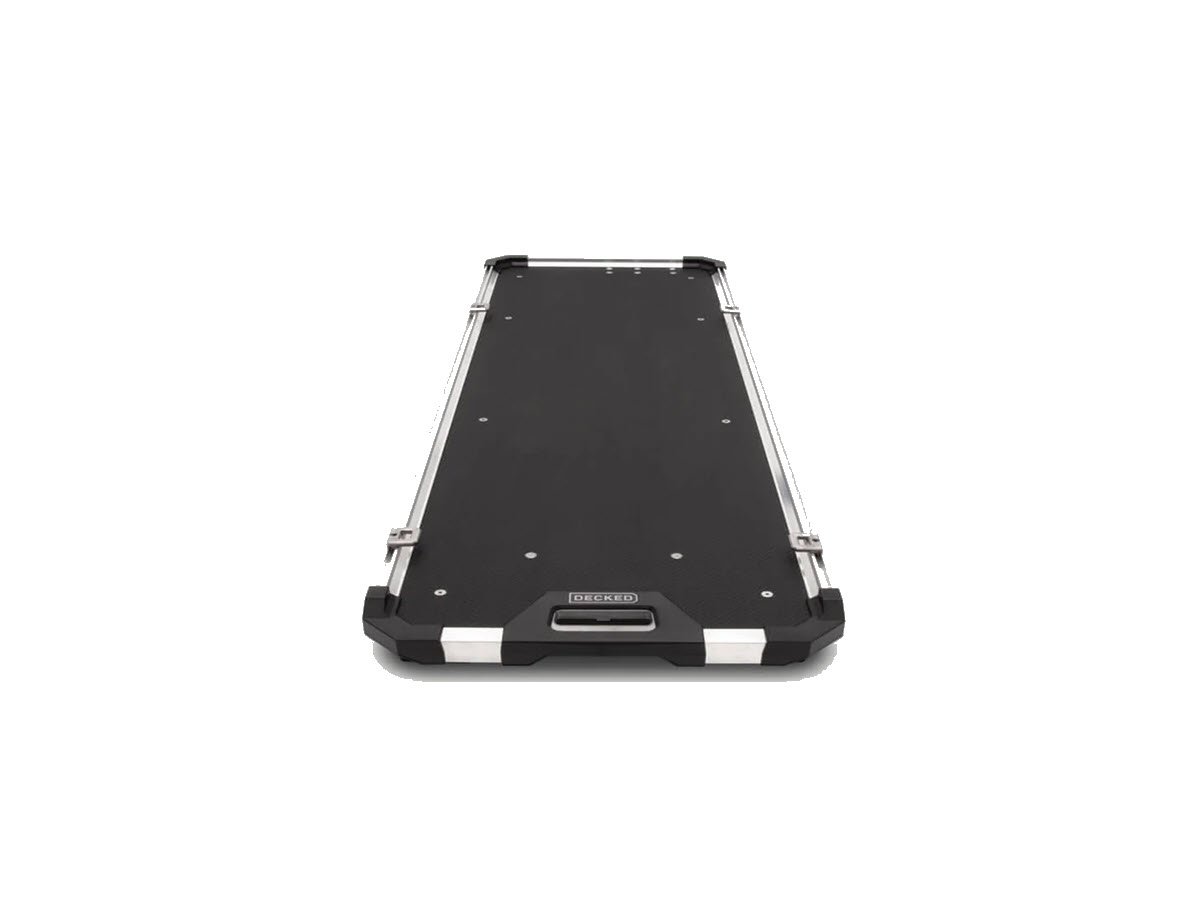

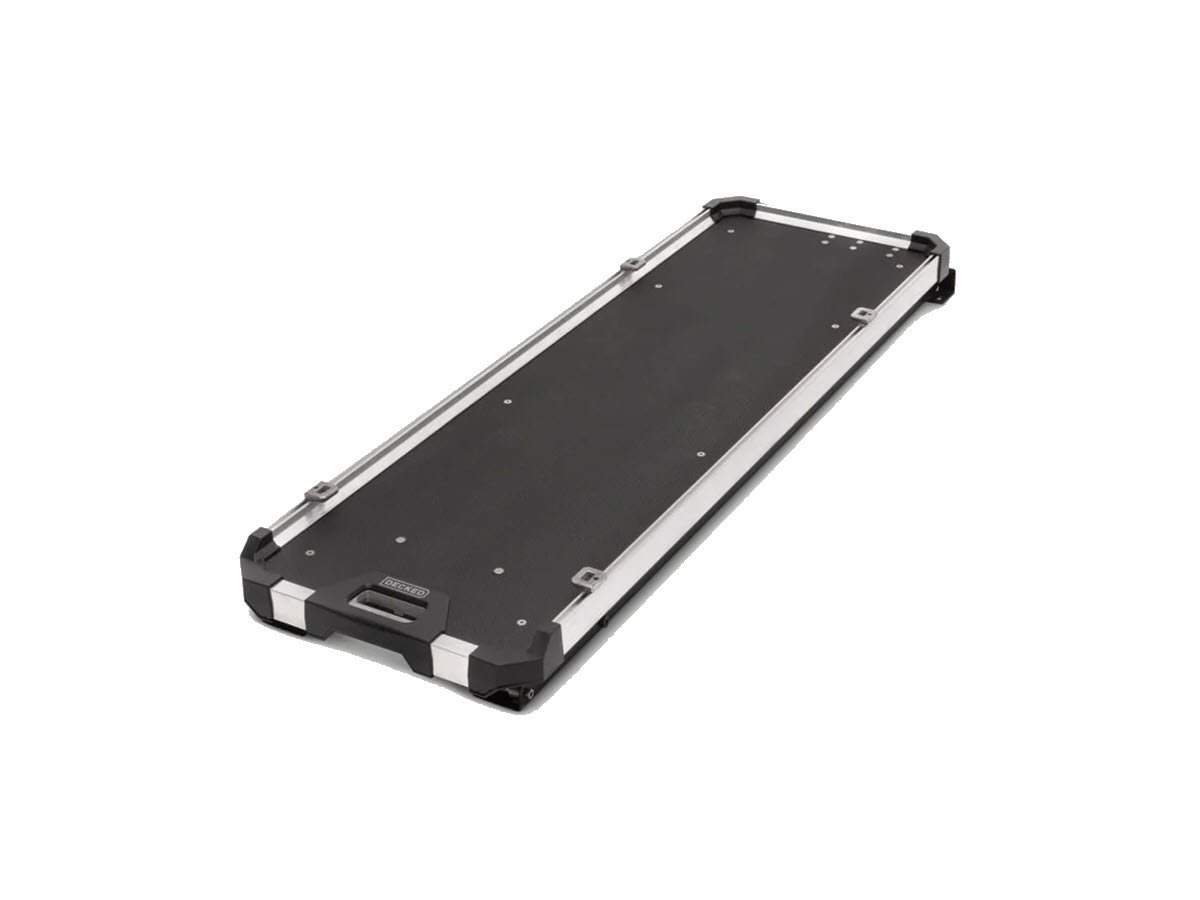

DECKED CargoGlide 600 Sliding Truck Bed Tray - Half Bed
Slide your gear to you—no climbing, no crawling, no hassle.

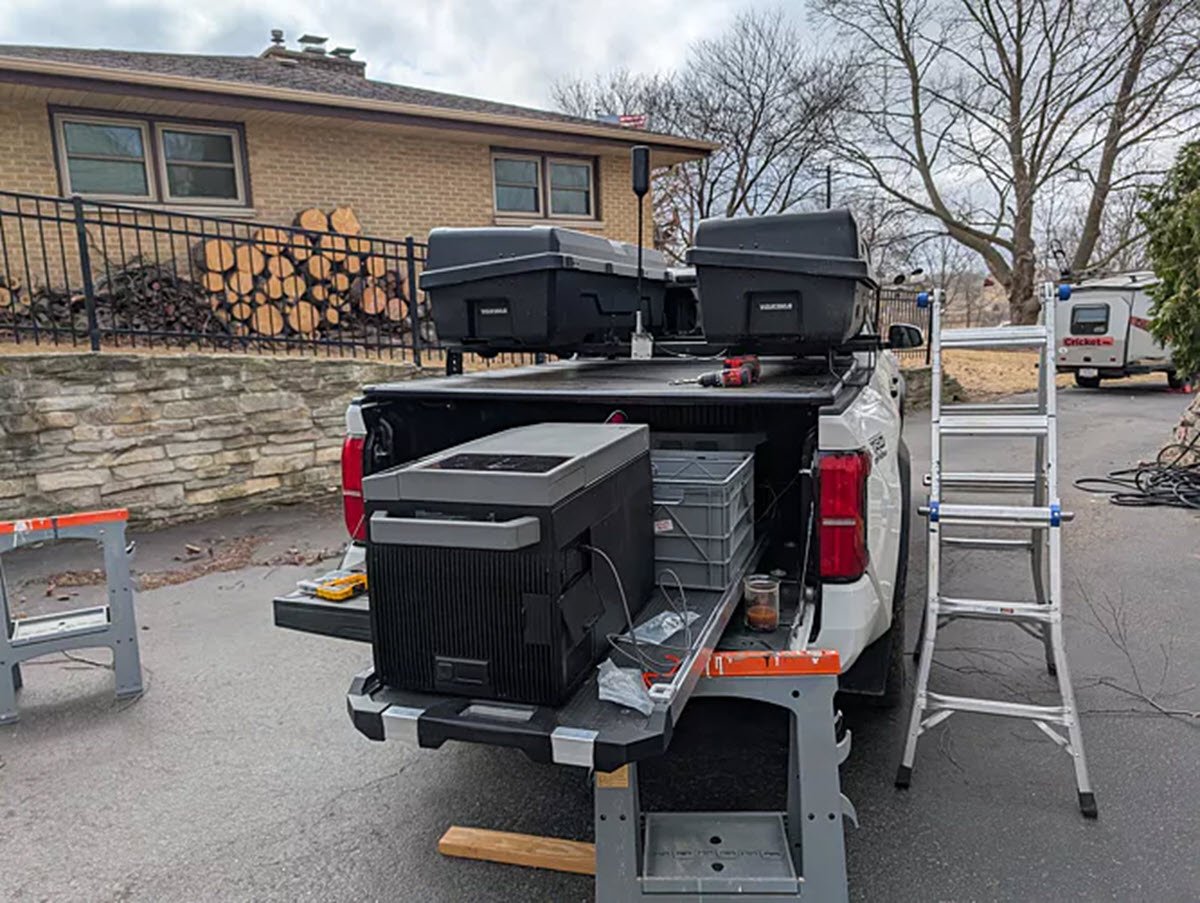

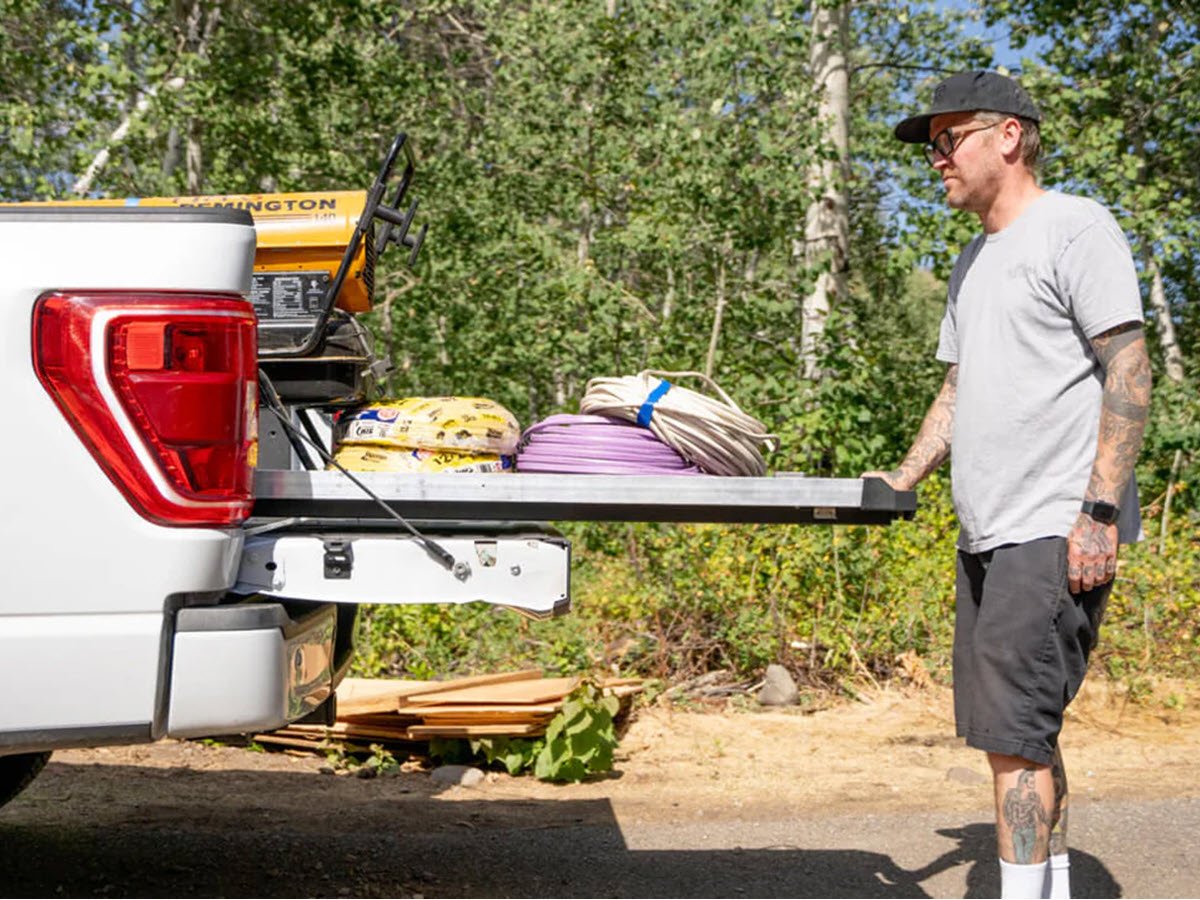

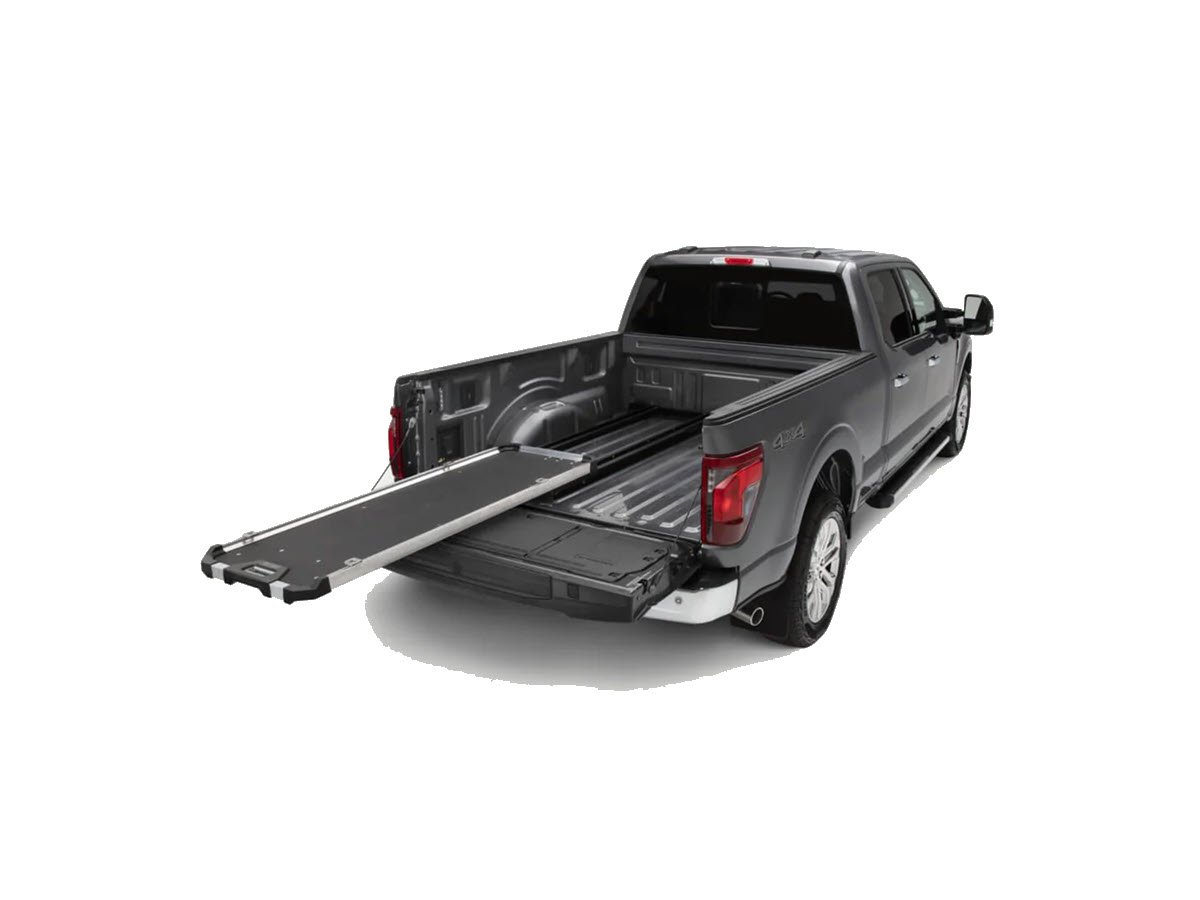

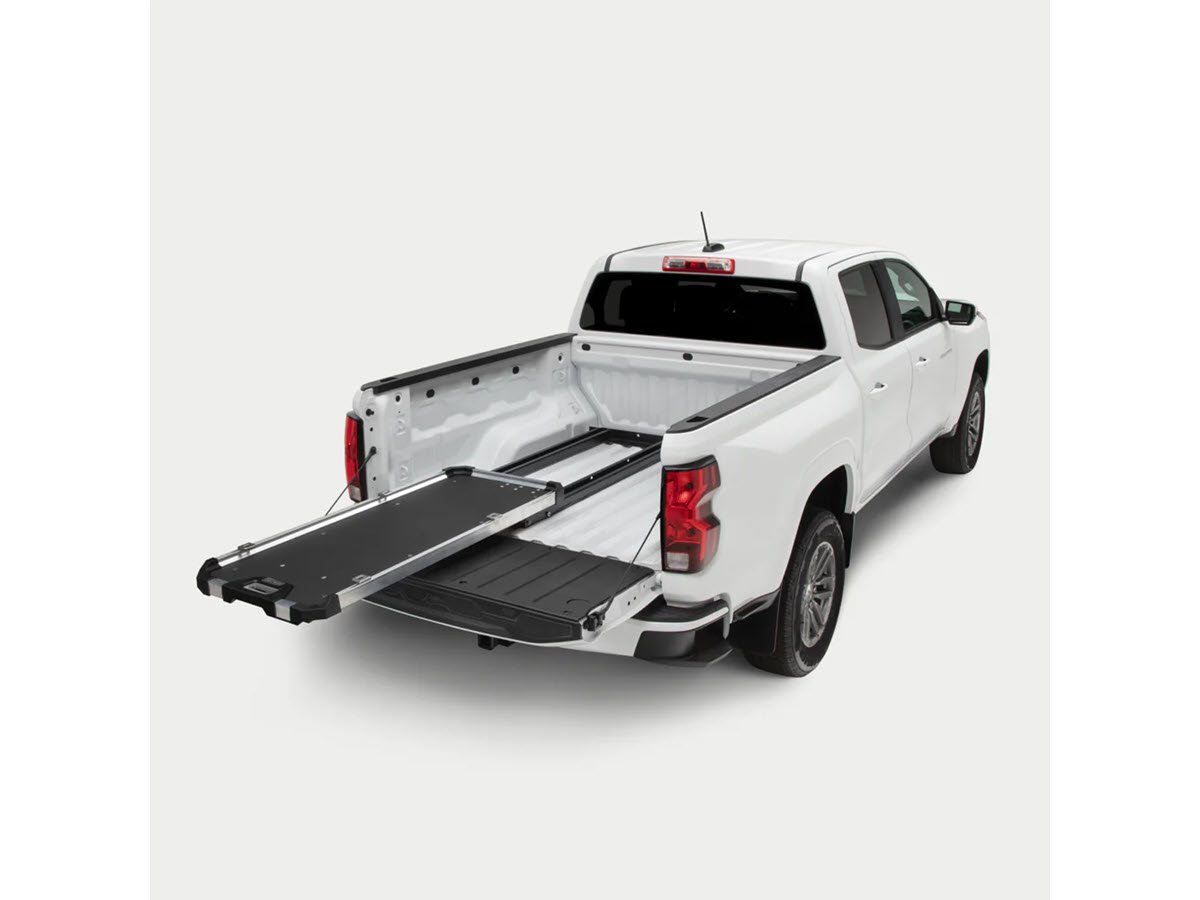

If you’ve ever found yourself crawling into the bed of your truck just to retrieve a tool or a cooler that slid to the front, you already know why the DECKED CargoGlide 600 is a game-changer. Designed for truck owners who want a smarter, more efficient way to access their cargo, this half-width sliding truck bed tray brings your gear to you with smooth, one-handed operation. With 75% extension and a 600 lb payload capacity, this is more than a convenience—it’s a serious upgrade for your truck bed utility.
Made for heavy-duty use but refined for everyday convenience, the CargoGlide 600 is built in the USA using top-shelf materials like powder-coated steel, marine-grade plywood, and an ultra-durable thermoplastic topsheet. It’s weatherproof, impact-resistant, and designed to handle the toughest jobs—whether you're loading tools, gear, coolers, or anything else you’d normally have to reach and strain for. Better still, it's engineered to work seamlessly with the DECKED Drawer System, unlocking next-level truck bed organization.
Key Features:
- 600 lb Payload with 75% Extension - Glide out your gear—even heavy items—with ease. One-handed operation and auto-stop handle keep cargo access quick and safe.
- Weatherproof Construction - Built with ¾” marine-grade plywood and topped with a thermoplastic sheet, this tray shrugs off rain, dust, UV rays, and impact.
- Made in the USA with Industrial-Grade Components - Crafted with American steel, aluminum, and high-impact corner guards, it's engineered for brutal use and backed by a lifetime warranty.

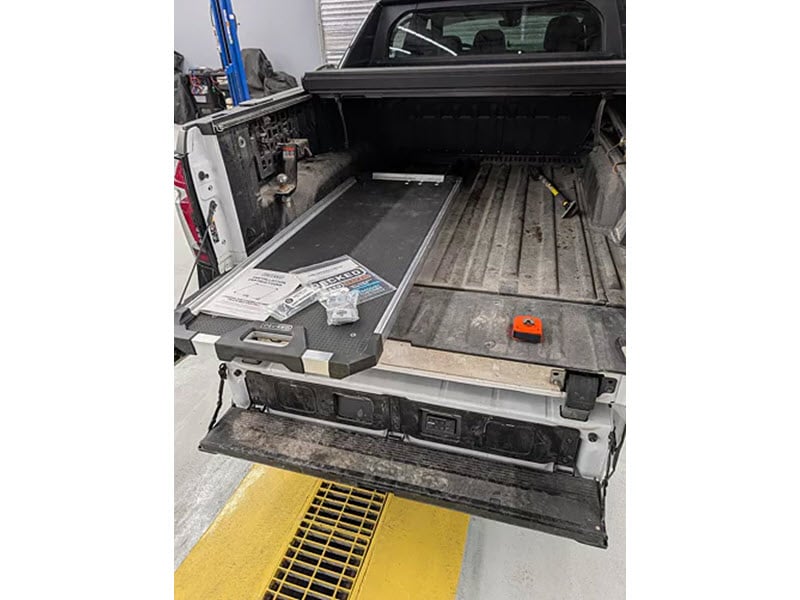

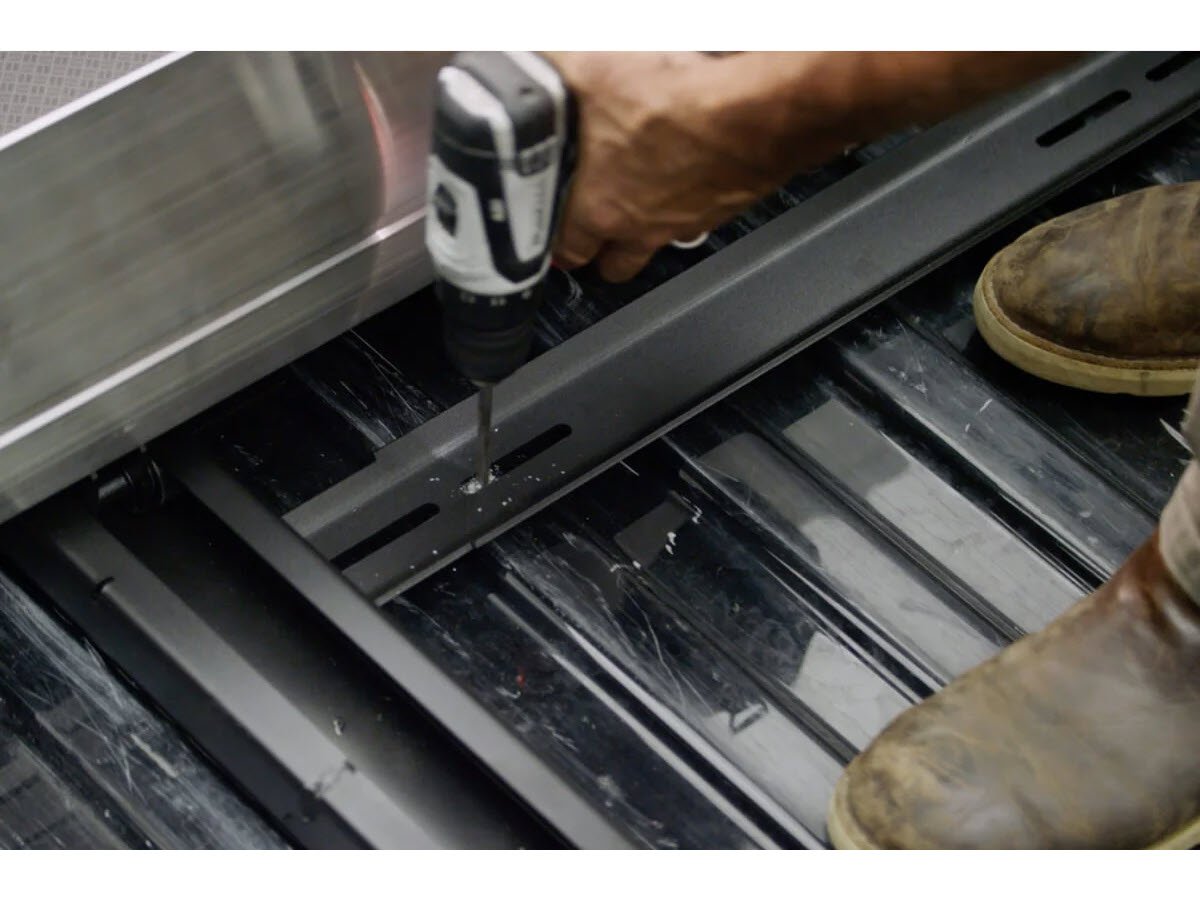

- Quick DIY Installation - Arrives preassembled. Just grab a drill and a buddy—it installs in 30–45 minutes with clear instructions for a no-hassle setup.
Built to Work Hard and Stay Smooth

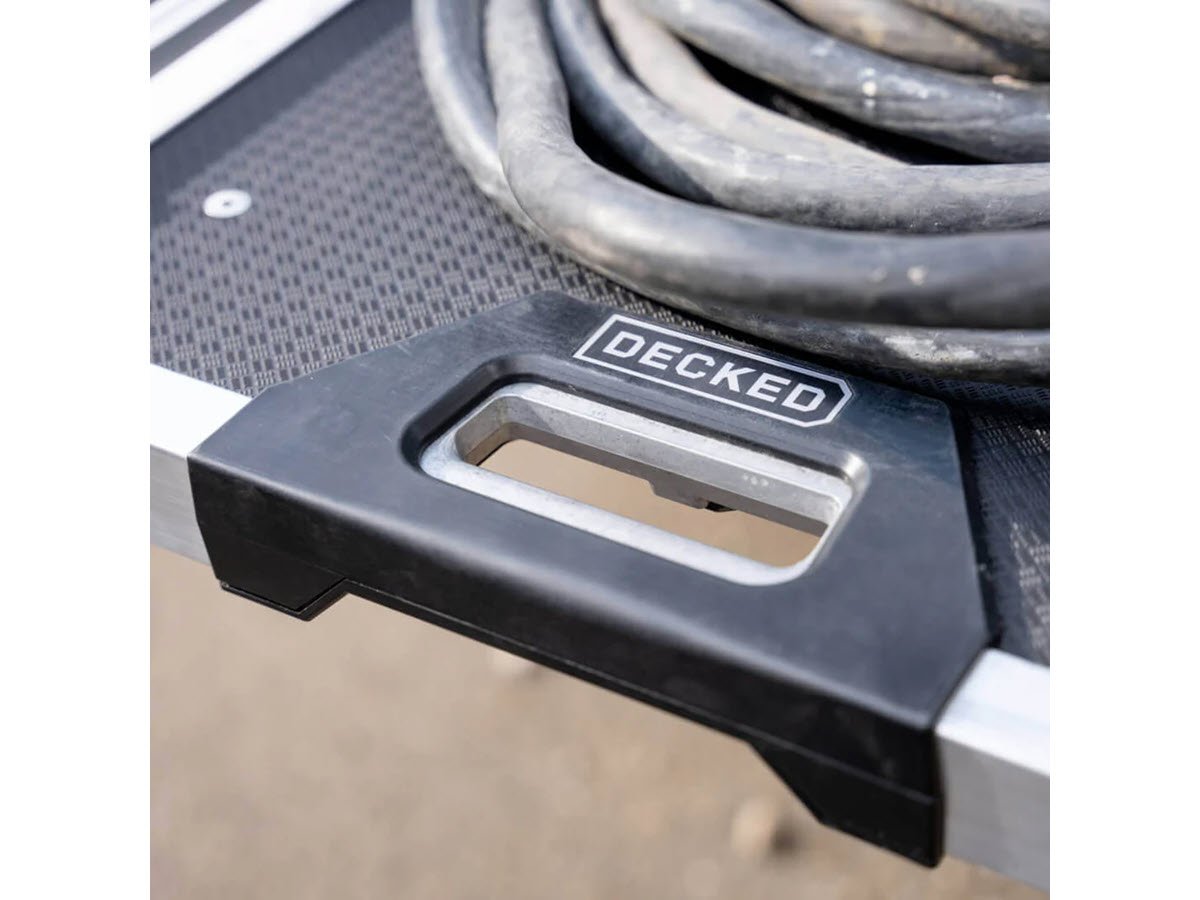

This isn’t just a sliding tray—it’s a precision-engineered cargo platform. Two sealed precision rollers and four sealed cam follower bearings glide your gear out like it’s floating on air, while the auto-stop handle ensures it only moves when you want it to. The frame is powder-coated American steel, with aluminum sidewalls and a cast-aluminum handle to complete its rugged build. Integrated D-ring tie-downs make securing your load easy, even when you’re in a hurry.
Compatible and Customizable

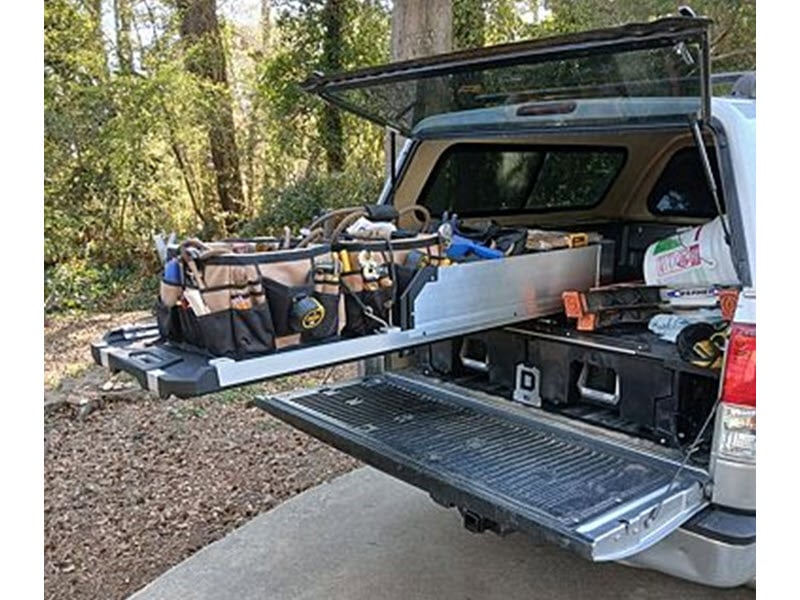

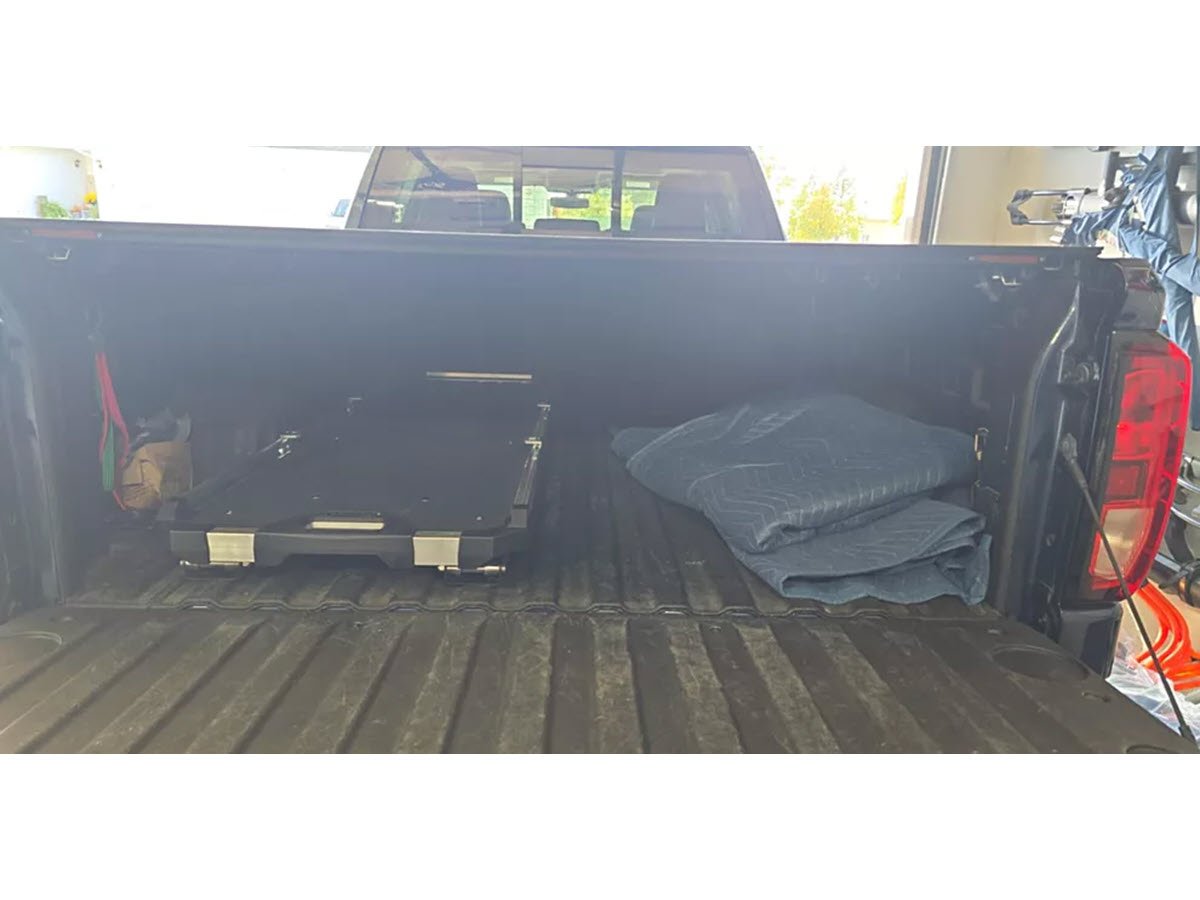

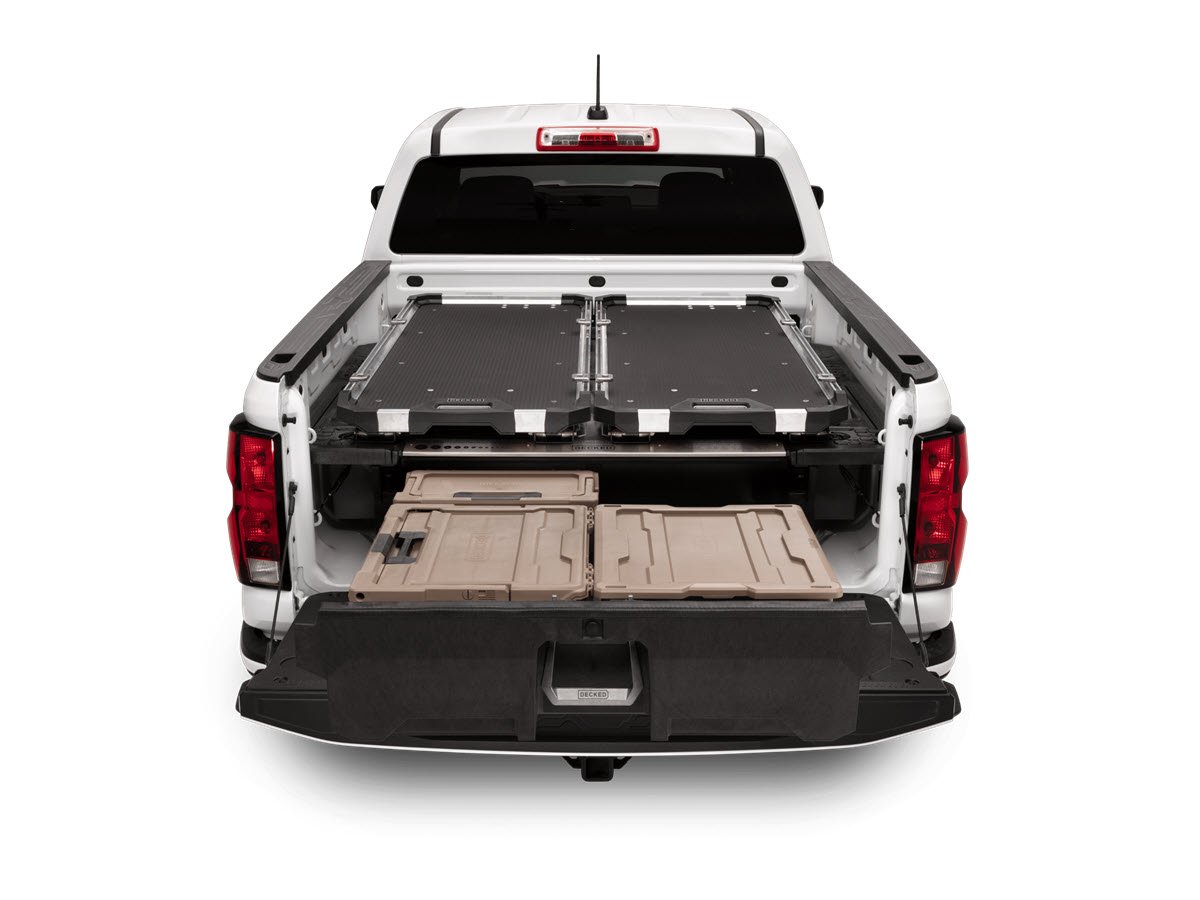

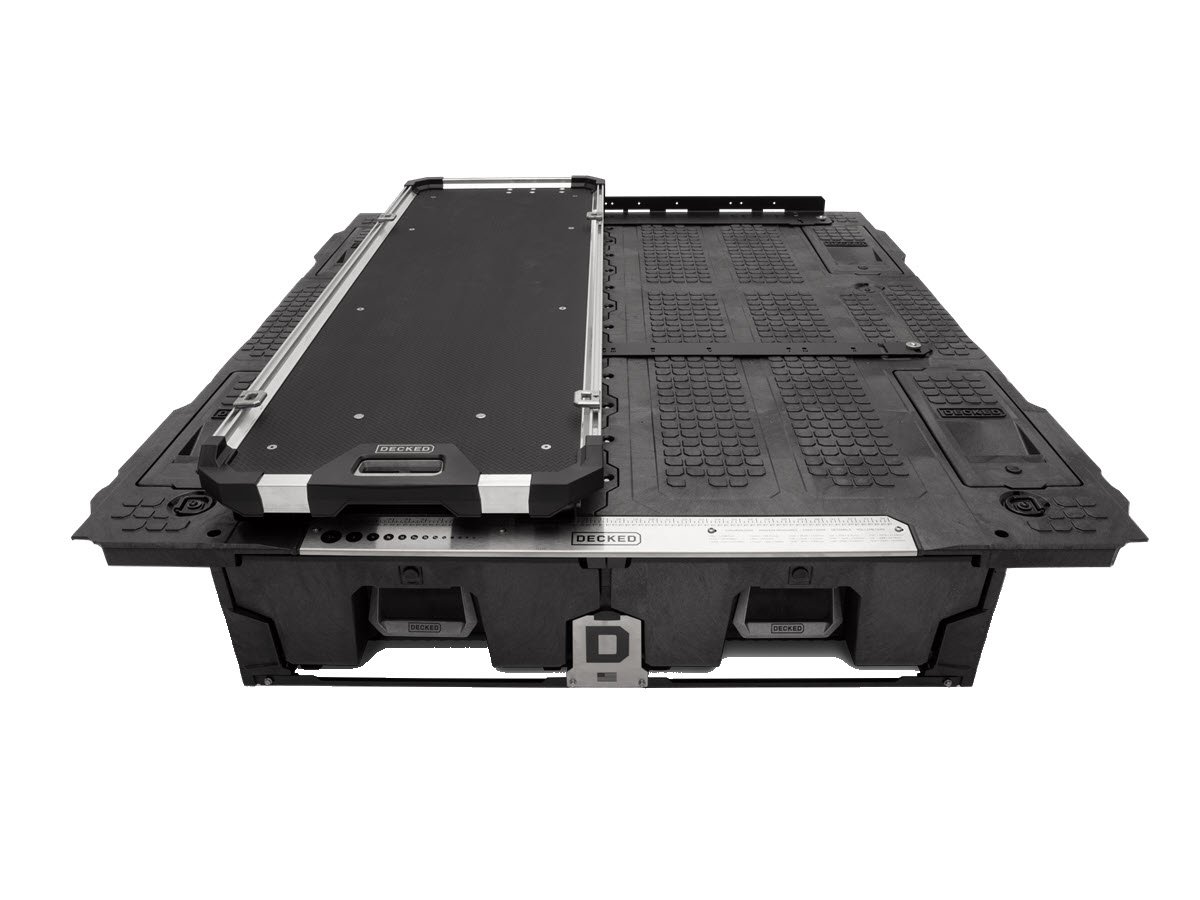

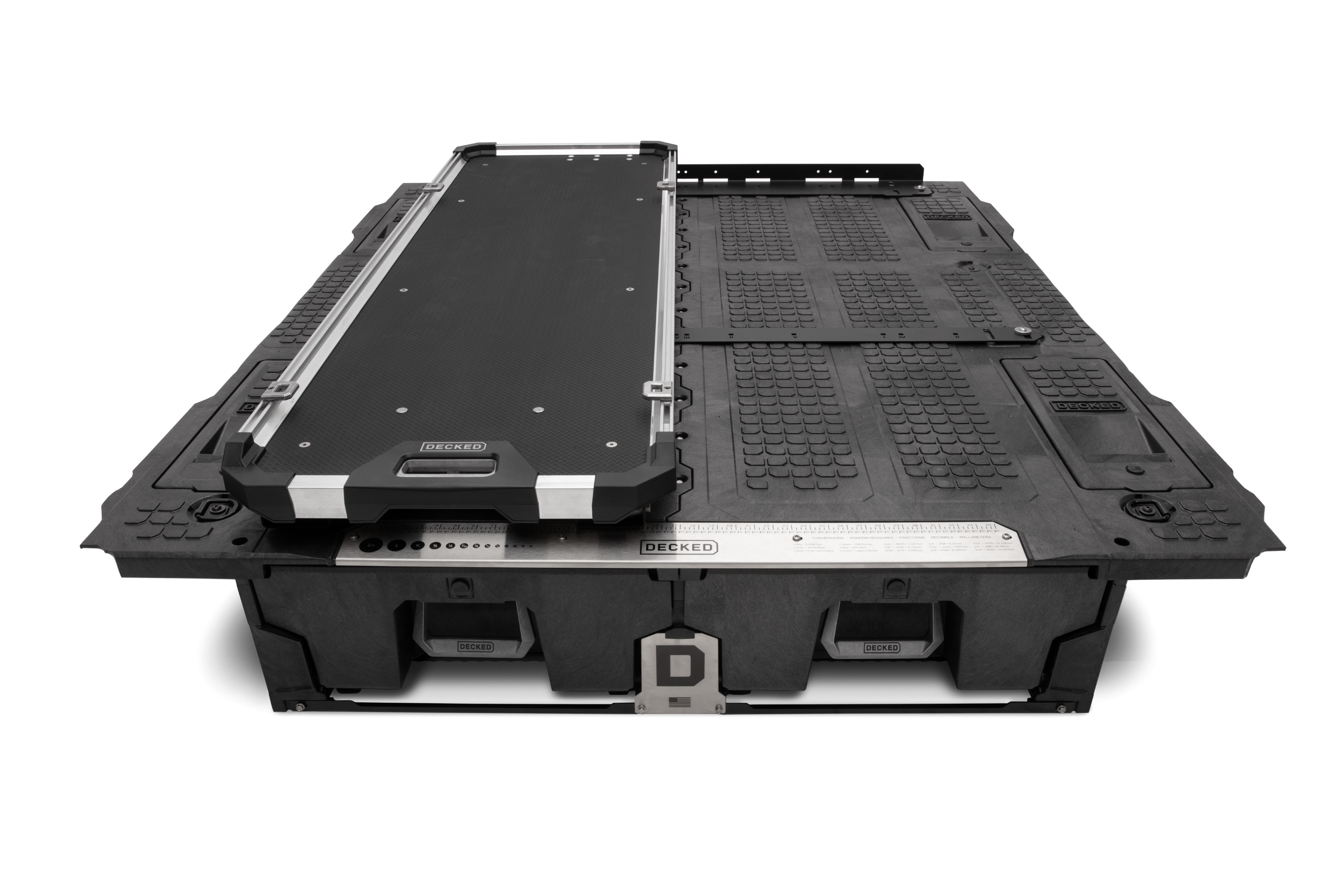

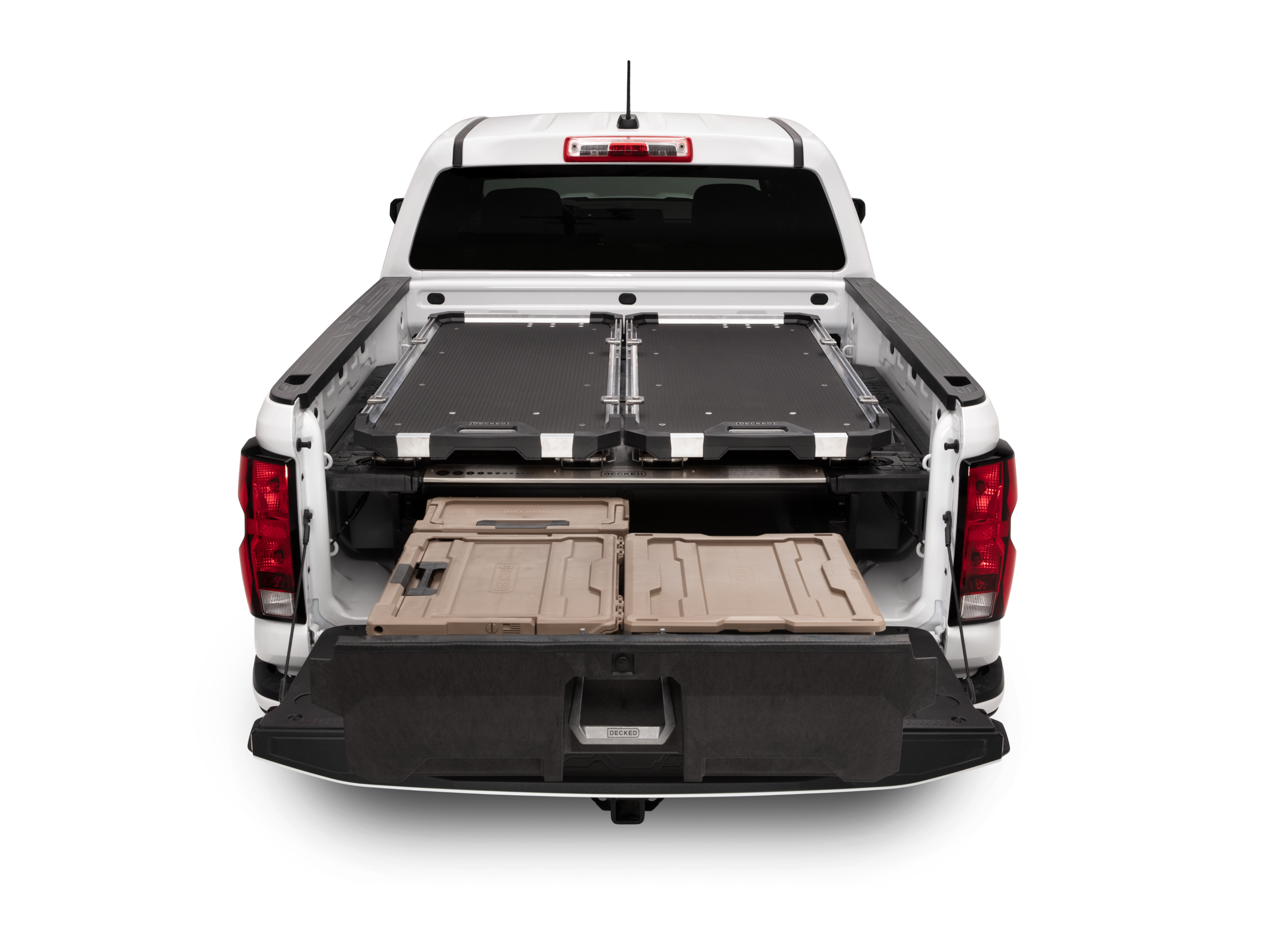

The CargoGlide 600 Half Bed model is designed for versatility. Its ultra-low profile fits neatly under tonneau covers, truck caps, and side-mounted toolboxes. Adjustable tailgate clearance ensures it works even on trucks where the tailgate doesn't lay flat. If you’re using a DECKED Drawer System, be sure to pick up the required CargoGlide Mounting Brackets for proper installation.
Compatible With:

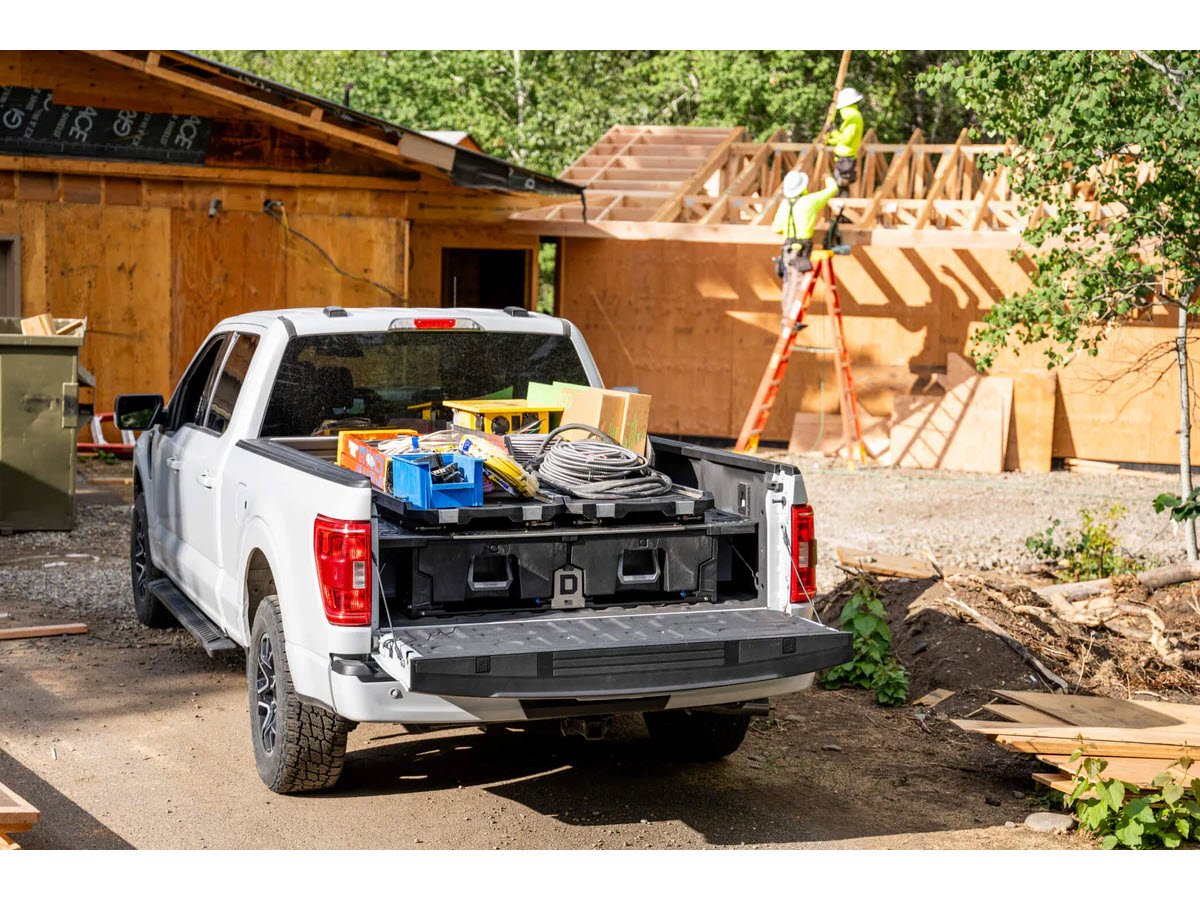

- DECKED Drawer System (Mounting Brackets required)
- Spray-in Bed Liners
Not Compatible With:
- Bedrug or Drop-in Plastic Bed Liners
- 5th Wheel or Gooseneck hitches
- CarbonPro Beds
- DECKED Tool Boxes
- Legacy Drawer Systems
Specifications
- Weight: 108 lbs
- Payload Capacity: 600 lbs
- Extension: 75%
- Tray Dimensions:
- Width: 20.8"
- Length: 64.3"
- Height: 3.4"
- System Dimension
- Width: 24.2"
- Length: 67.7"
- Height: 4.7"
Materials:
- Powder-coated U.S. steel frame
- ¾” Marine-grade plywood deck
- Thermoplastic topsheet
- Extruded aluminum sidewalls
- Cast aluminum handle

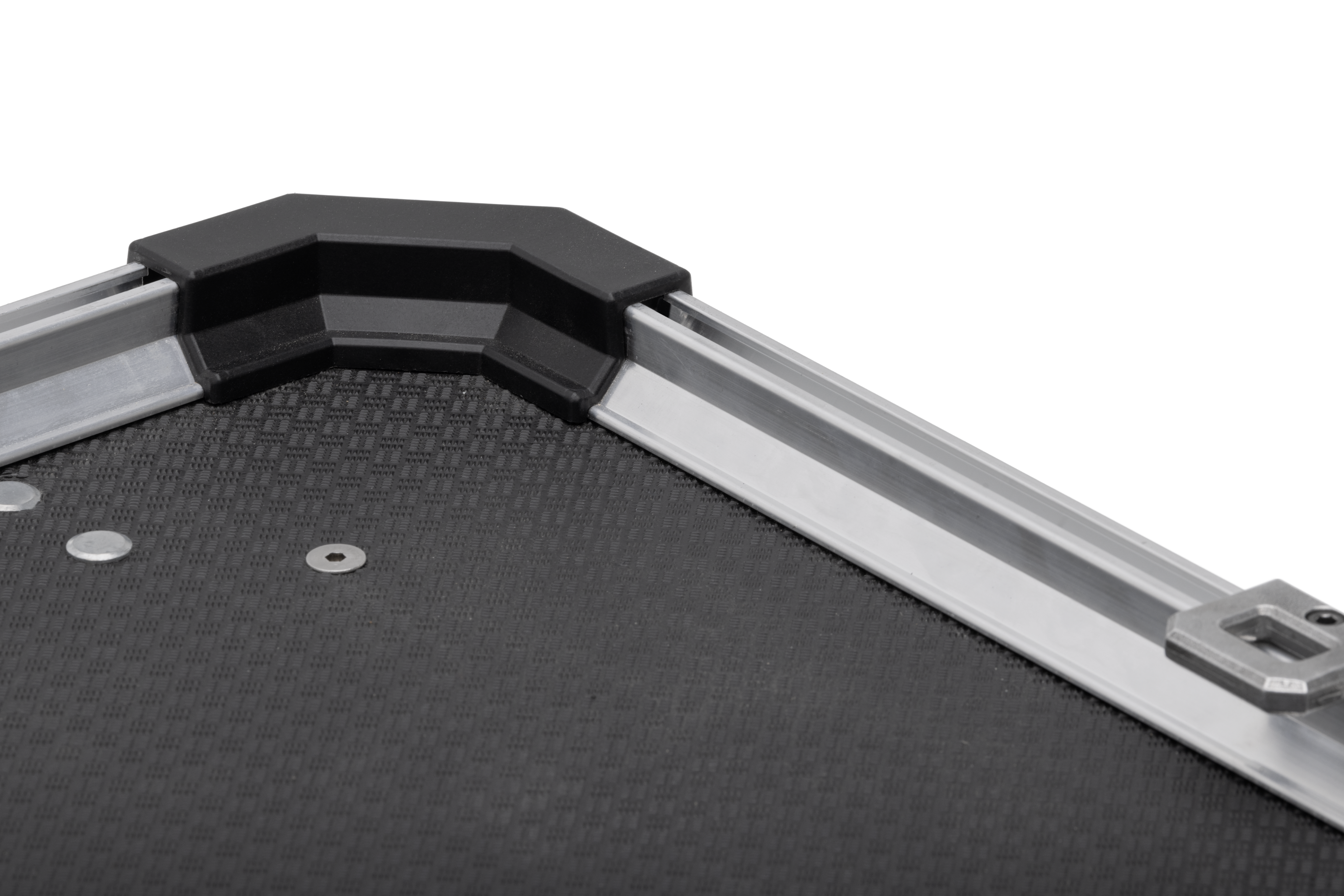

- High-impact polymer corner guards
Bearings:
- 2 Precision rollers with sealed bearings
- 4 Cam follower bearings on custom axles
What’s Included
- Preassembled CargoGlide 600 Half Bed Tray

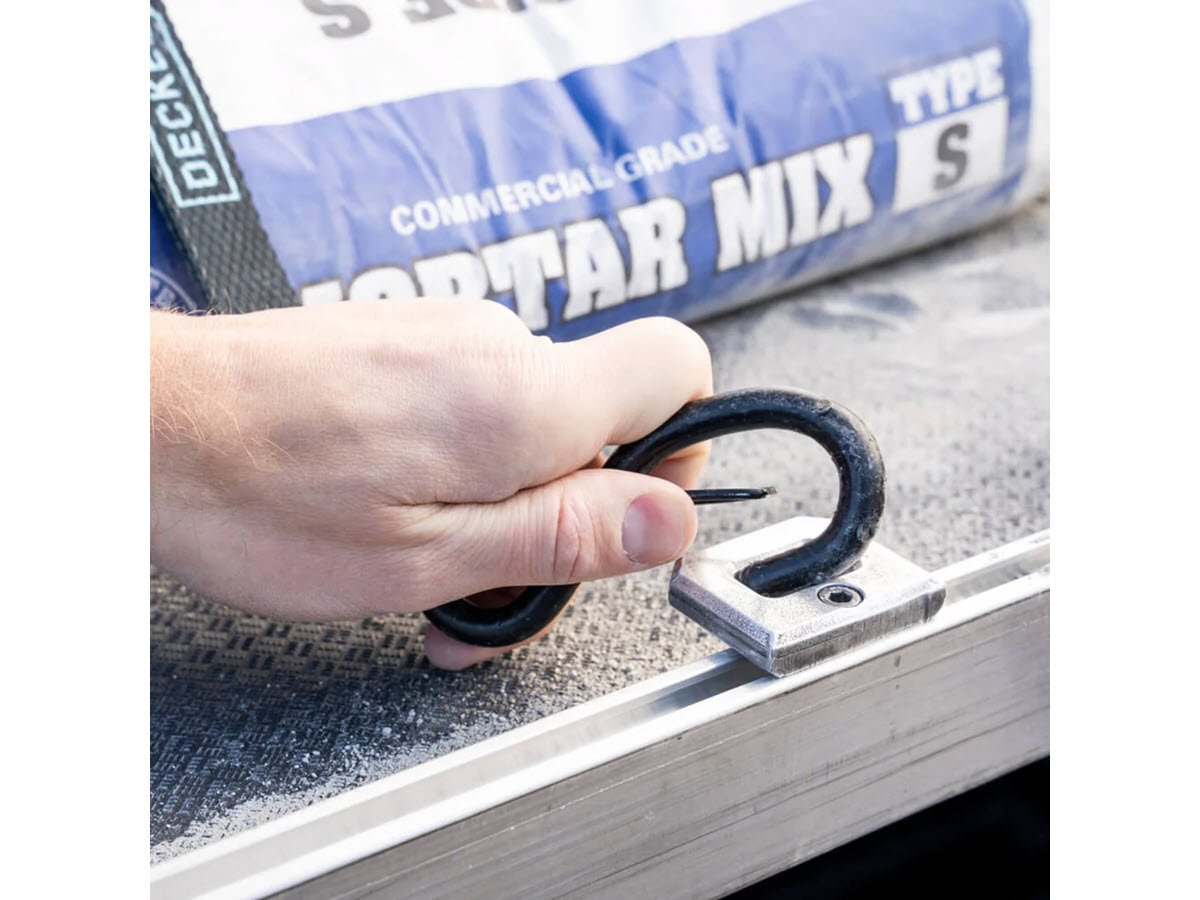

- 4 integrated D-ring tie-downs
- Installation hardware
- User manual and installation instructions
Terms to Know
- Payload: The maximum weight the slide-out tray can safely carry (600 lbs in this case).
- 75% Extension: The tray slides out to 75% of its full length, making most cargo easily accessible without needing to crawl into the bed.
- Marine-Grade Plywood: High-durability wood resistant to moisture and rot, ideal for outdoor applications.
- Thermoplastic Topsheet: A weatherproof, UV-resistant plastic sheet that protects the plywood deck from the elements and heavy wear.
Whether you’re a contractor tired of climbing into your bed for tools, an overlander who needs quick cooler access, or just someone who appreciates a clean, efficient truck setup, the DECKED CargoGlide 600 is the upgrade you’ve been waiting for. Its heavy-duty construction, effortless operation, and smart design features make it a standout in the world of automotive accessories. Combine it with the DECKED Drawer System for the ultimate vehicle storage solution. You’ll wonder how you ever lived without it.
