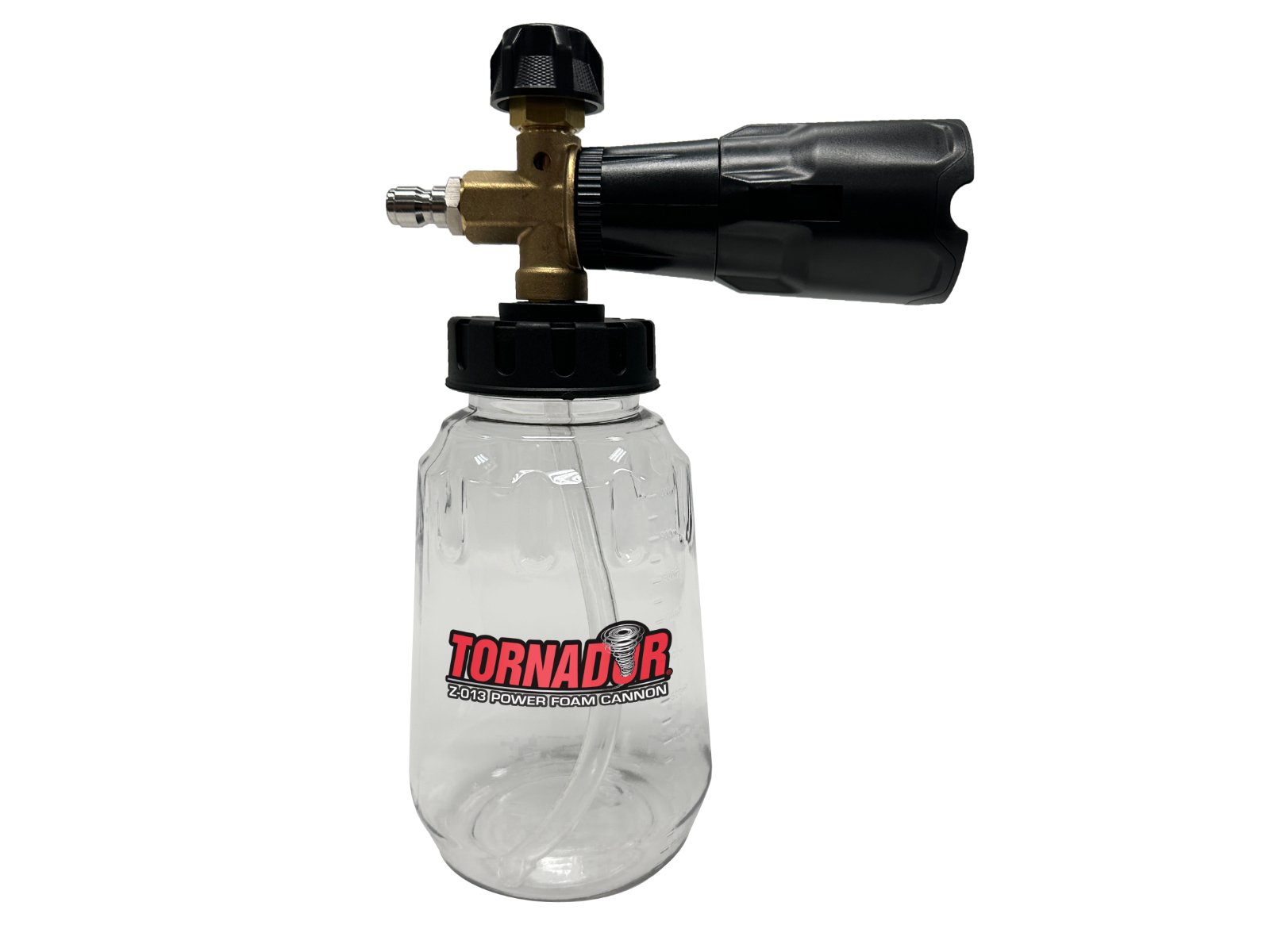

Tornador Foam Cannon

The Tornador® Z-013 Power Foam Cannon is the perfect tool for expediting the cleaning process, by blasting a high volume of thick foam onto surfaces quickly. The wider spray nozzle provides for superior coverage. The Z-013 is highly adjustable allowing for control of the size of the spray pattern, the volume of the foam and also the orientation of the spray pattern to vertical or horizontal. A must have for every detailer or enthusiast.

Specifications:

• 1.3lbs
• 1 Liter Capacity
• Minimum 800 PSI
• Maximum 3500 PSI
• 1.4 GPM (2.0 Recommended)
• 226.56 L/m Air Consumption
• 1/4 BSP (G 1/4)F Quick Connect
• 140 Degree Temperature Rating
• Stainless Steel Nozzle
• Brass Valve Stem

Assembly & Directions:
1. Connect the suction tube to the main body of the Power Foam Cannon
2. Unscrew material jar from the Power Foam Cannon unit and fill the jar with
product as per the manufacturer’s recommended dilution ratio.
3. Attach the Power Foam Cannon to your pressure washer, using the quick release
connector and pressure washer adaptor.
4. Begin spraying thick foam, covering entire vehicle and/or surface(s).
