When you need to install folding shelving in your extended-length Mercedes-Benz Sprinter van without drilling into the floor, the WEATHER GUARD Dual Rail Shelf Mounting Kit delivers the professional solution engineered specifically for maximum-capacity vans. This innovative automotive accessory is precisely designed for 170" and 170" Extended wheelbase Sprinter vans (both standard and high roof configurations), utilizing existing mounting holes in reinforced wall sections to create secure shelf attachment points without floor penetration. The extended-length extruded aluminum mounting rails—over 102" long—distribute weight properly across the longer cargo area while providing the structural foundation necessary for safe, reliable folding shelf installation on either the driver side rear or passenger side locations. For commercial operators, tradespeople, fleet managers, or anyone converting an extended Sprinter into an organized mobile workspace with maximum storage capacity, this mounting rail system represents the essential foundation for professional van shelving in the largest Sprinter configurations.
Extended-Length Design for Maximum-Capacity Sprinters
The 170" and 170" Extended wheelbase Sprinter vans represent Mercedes-Benz's maximum-length configurations, providing the ultimate cargo capacity for operations that need the most interior volume available. These extended vans are popular with operations requiring substantial cargo capacity, mobile workshops with extensive tool and parts storage, service businesses carrying comprehensive equipment inventories, specialty contractors with bulky equipment needs, or any application where maximum interior space directly impacts operational capability and efficiency.
This mounting rail kit is specifically engineered for these extended-length configurations, with rails measuring approximately 102.48" long—significantly longer than the 63" rails designed for 144" wheelbase vans. This extended length is essential for properly supporting folding shelves throughout the longer cargo area, distributing mounting forces across the extended wall structure, providing stable shelf operation even in the rear sections of these long vans, and ensuring that weight distribution principles are maintained across the full length of the installation.

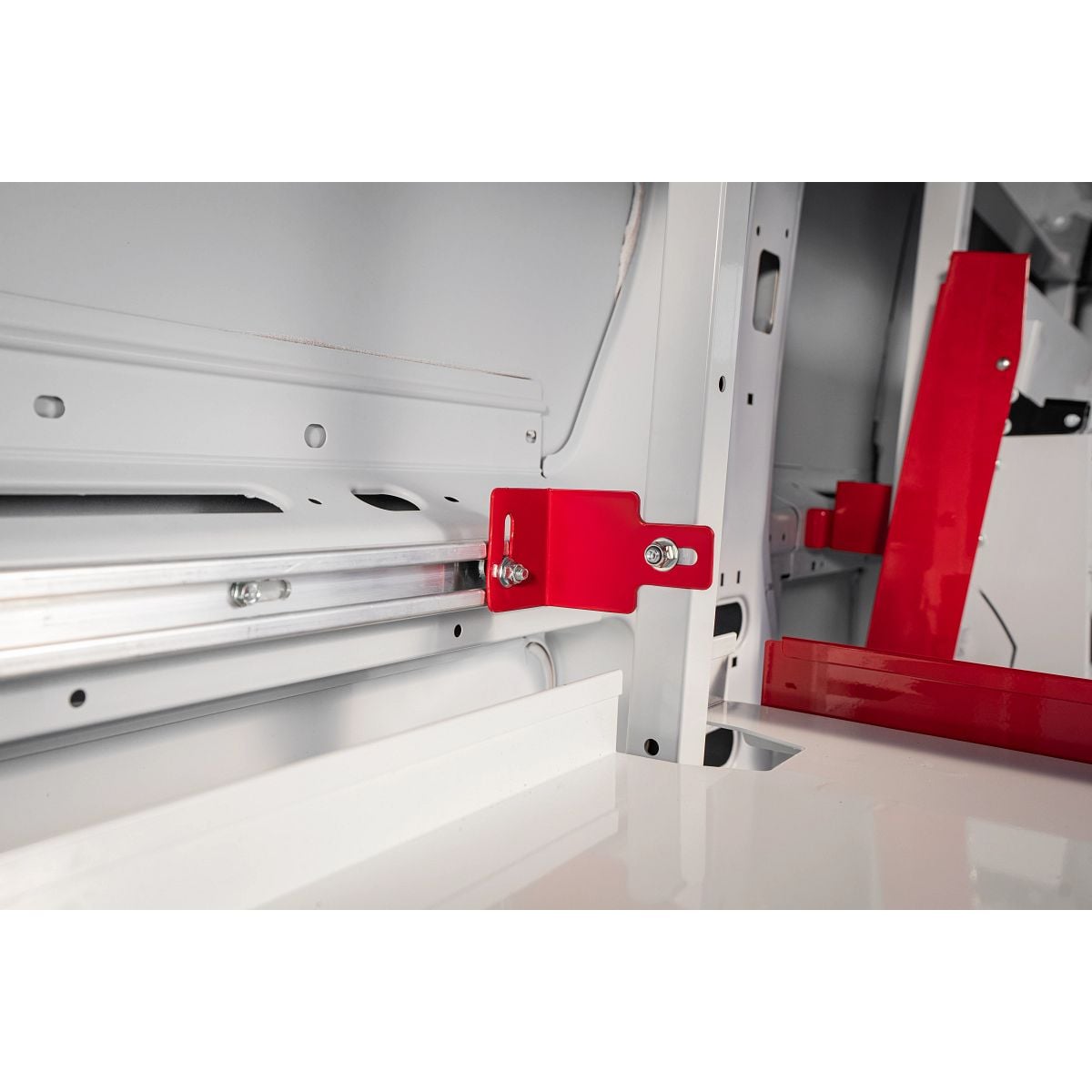

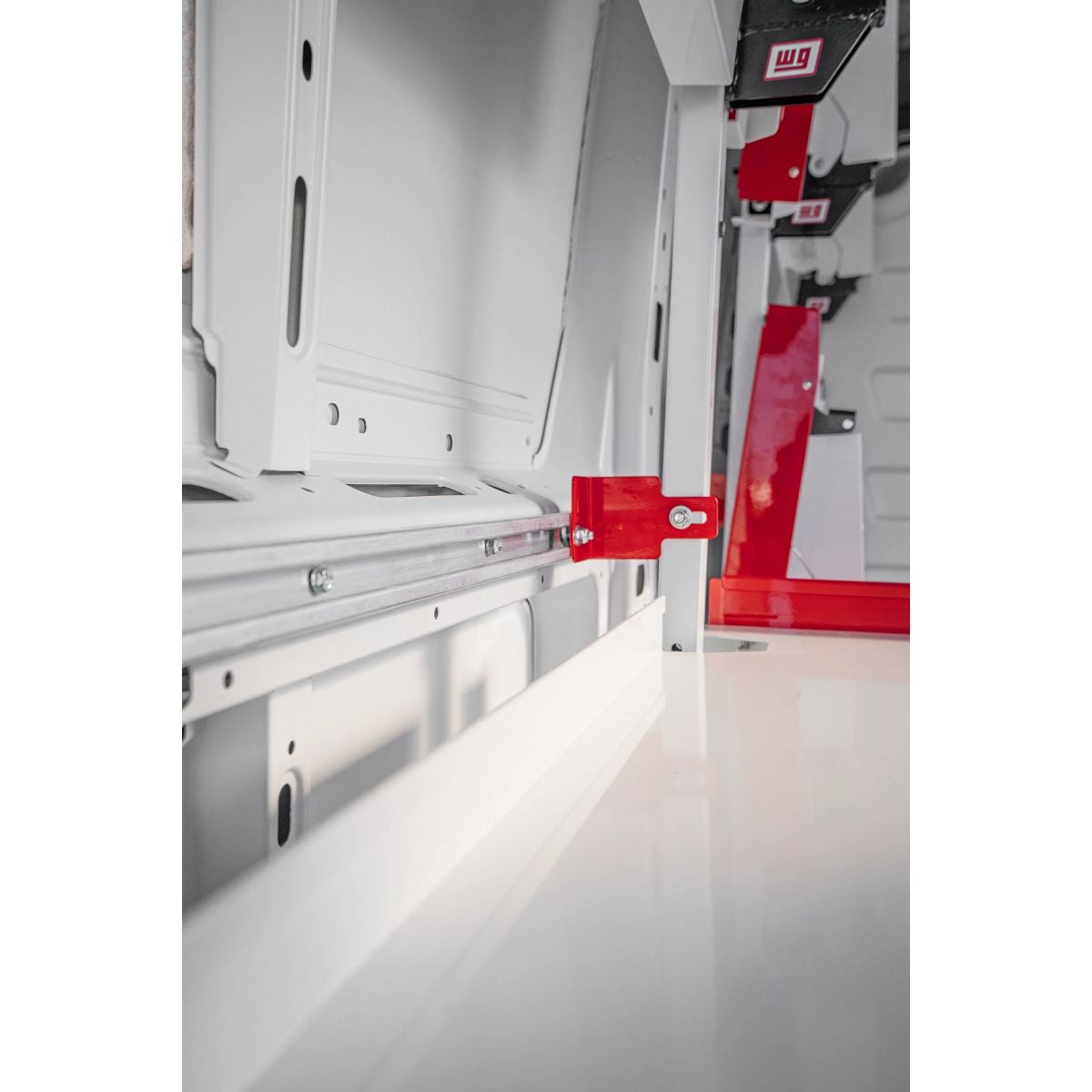

The kit utilizes existing mounting holes in reinforced sections of the Sprinter's wall structure—factory-engineered mounting points specifically intended for upfitting and accessory installation. By using these existing mounting points rather than drilling new holes, you preserve the van's structural integrity and factory sealing, maintain corrosion protection without creating new penetration points, avoid potential warranty concerns that drilling might create, ensure mounting forces distribute through reinforced sections designed to handle loads, and create professional installations that maintain maximum resale value—particularly important for extended-length vans that represent substantial investments.
Extruded Aluminum Construction and Weight Distribution Engineering
The extruded aluminum construction provides ideal material properties for extended-length mounting rail applications. Extrusion creates a consistent, precision profile along the entire 102" length, ensuring uniform strength and proper fit with folding shelf components throughout the extended cargo area. Aluminum offers excellent strength-to-weight ratio, keeping the mounting system at a manageable 8.8 pounds despite the extended length while providing the structural integrity necessary to support loaded shelving across the longer span, natural corrosion resistance for long-term durability in commercial van environments where moisture, chemicals, and temperature variations are constant, and precision that ensures compatibility with WEATHER GUARD folding shelf systems.

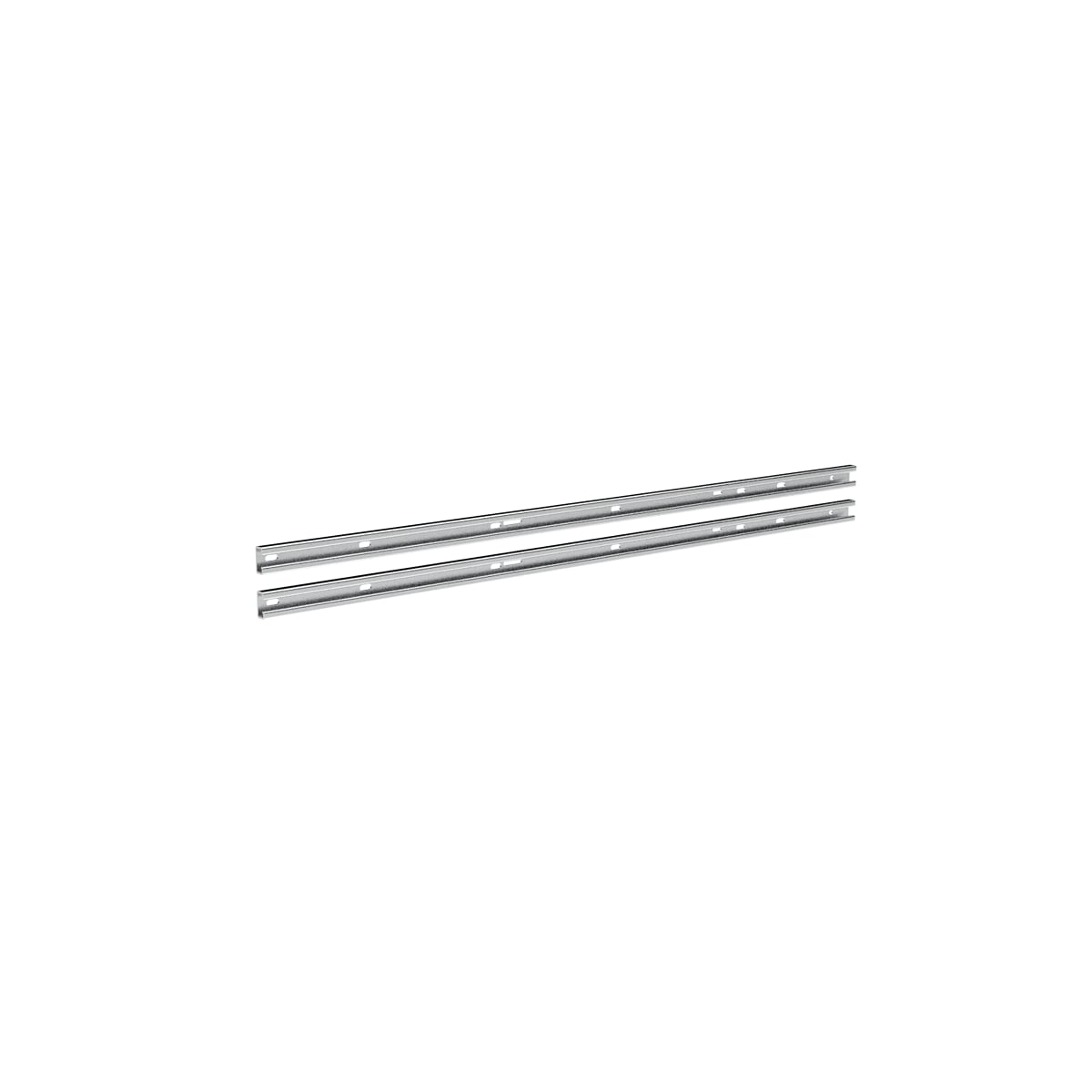

The rails measure approximately 102.48" long, 0.77" wide, 1.625" high, and 6" deep—dimensions specifically engineered for extended Sprinter wall geometry and the additional considerations of longer-span installations. The profile is designed to distribute the weight of folding shelving across multiple mounting points along the extended length rather than concentrating loads at single attachment locations.
This weight distribution engineering becomes even more critical in extended-length vans where the longer spans create different structural considerations than shorter configurations. Proper weight distribution prevents stress concentration that could damage van walls or mounting points over time, ensures stable shelf operation even when fully loaded throughout the extended length, maintains structural integrity throughout years of loading and unloading cycles in high-capacity applications, and allows the mounting system to support substantial shelf loads across the extended cargo area without requiring floor reinforcement that would compromise the usable floor space.
By distributing weight through wall-mounted rails rather than requiring floor mounting, the system preserves your valuable van floor space—particularly important in extended-length vans where floor area is a primary reason for choosing these larger configurations. The wall-mounted rail approach keeps the floor clean, sealed, and available for pallets, large equipment, or any cargo that benefits from unobstructed floor space.
Key Features
- Extended 102" Rails: Specifically engineered for 170" and 170" Extended wheelbase Sprinters—proper length for maximum-capacity vans
- No-Drill Installation: Uses existing mounting holes in reinforced Sprinter wall sections—preserves van integrity and resale value
- Flexible Mounting Location: Installs folding shelves on either driver side rear or passenger side location based on workflow needs
- Extruded Aluminum Construction: Lightweight yet strong design distributes weight properly across extended length without floor drilling
Installation and Extended Van Compatibility
Installation takes approximately 0.5 hours (30 minutes), making this a straightforward upfitting project that doesn't require extensive vehicle downtime despite the extended length of the rails. The process involves locating the existing mounting holes in the Sprinter's reinforced wall sections along the extended cargo area, positioning the extended-length mounting rails at the desired location (driver side rear or passenger side), securing the rails using appropriate fasteners through existing holes along the full length, and then attaching folding shelves to the installed rail system.
The flexibility in mounting location is particularly valuable in extended-length vans where cargo variety and workflow patterns can be more complex than in shorter configurations. Some operations prefer passenger side shelving to keep the driver side clear for longer items, palletized cargo, or specific equipment that benefits from the full length, while others choose driver side mounting based on job site access patterns, loading dock configurations, or door arrangement preferences. The dual rail kit accommodates either location, allowing you to configure your extended van based on actual operational requirements rather than being constrained by fixed mounting positions.

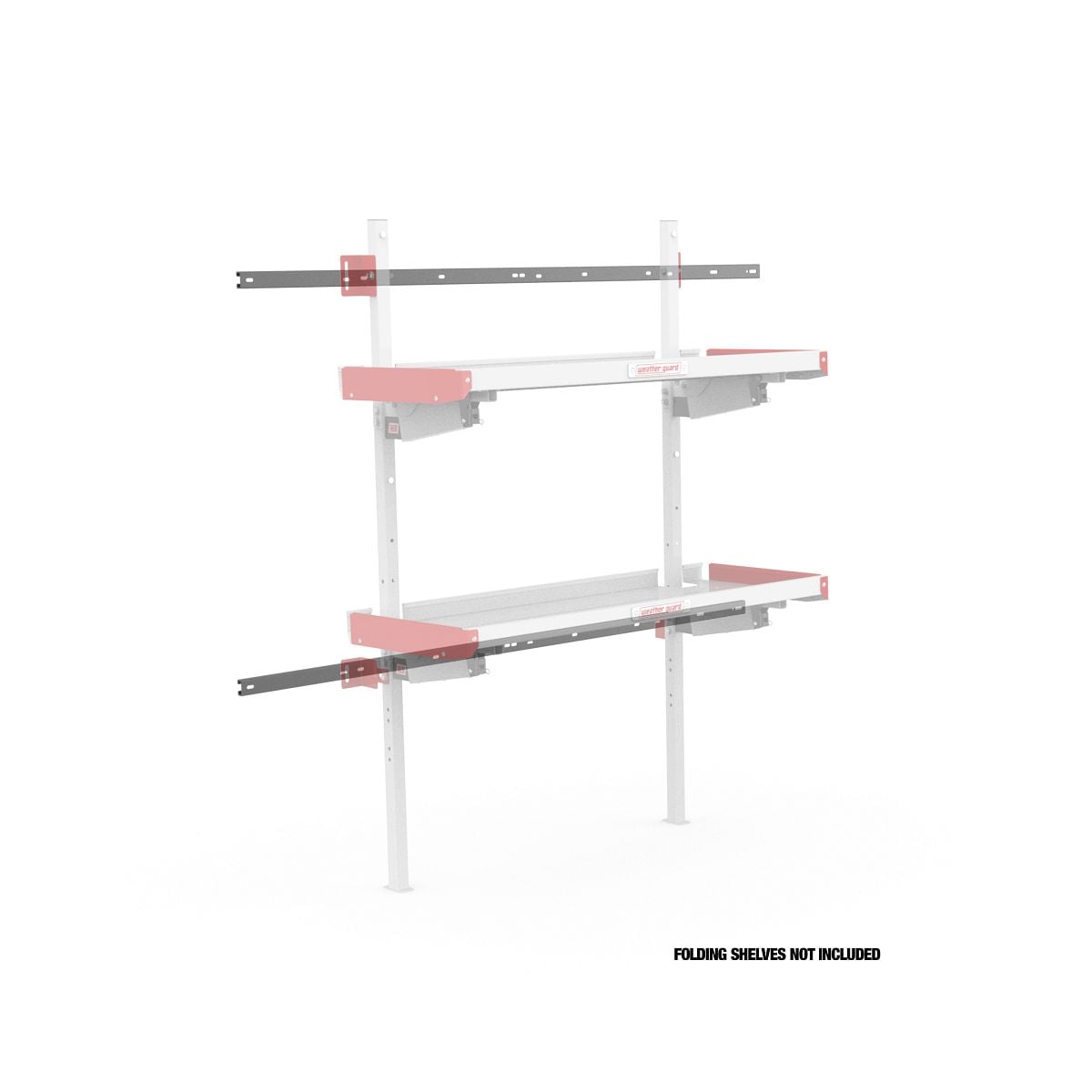

This mounting rail system is designed to work with WEATHER GUARD folding shelves of any size. In extended-length vans, folding shelves become even more valuable because they provide organized storage that prevents items from shifting during transport across the longer cargo area, fold up against the wall when not needed to create floor space for pallets or bulky equipment, fold down to create secure storage compartments when needed for parts, tools, or inventory, and create the professional organization that improves efficiency in high-capacity mobile workshops.
The rails are compatible with both 170" wheelbase and 170" Extended wheelbase Sprinter vans in either standard roof or high roof configurations. This covers the full range of maximum-length Sprinter options, whether you're running standard roof for operations where height isn't critical or high roof for maximum interior volume and standing height throughout the extended cargo area.
Quality and Professional Installation
The Limited Lifetime Warranty demonstrates WEATHER GUARD's confidence in design and construction quality even in these extended-length applications where structural demands are greater. USA manufacturing ensures the precision engineering and quality control necessary for vehicle-specific mounting components that must fit existing holes precisely across extended lengths and support loaded shelving safely throughout years of commercial use.
The natural aluminum finish (no powder coat) keeps the weight minimal while aluminum's natural corrosion resistance provides long-term durability. In commercial van applications, keeping component weight down is valuable for maximizing payload capacity—particularly important in extended-length vans where operators are often utilizing maximum cargo capacity and every pound of vehicle weight impacts what you can legally haul.
Product Specifications
- Material: Extruded Aluminum
- Finish: Natural Aluminum (No Powder Coat)
- Mounting Method: Uses Existing Holes in Reinforced Wall Sections
- Installation Time: 0.5 hours (30 minutes)
- Warranty: Limited Lifetime
- Country of Origin: USA
Dimensions:
- Length: 102.48" (extended length for 170" wheelbase)
- Width: 0.77"
- Height: 1.625"
- Depth: 6"
- Weight: 8.8 lbs
Features:
- Extended 102" length for 170" wheelbase vans
- No-drill installation
- Uses existing mounting points
- Extruded aluminum construction
- Weight distribution engineering
- Flexible mounting location (driver or passenger side rear)
- Compatible with any size WEATHER GUARD folding shelf
- Preserves floor space in extended cargo area
Compatible Vehicles:
- Mercedes-Benz Sprinter (170" wheelbase)
- Mercedes-Benz Sprinter (170" Extended wheelbase)
- Standard roof configuration
- High roof configuration
Mounting Locations:
- Driver side rear
- Passenger side rear
- One kit installs one location
Note: This kit installs folding shelves at one location (driver side rear OR passenger side). Separate kit required for additional locations.
Maximum Van, Maximum Organization
Whether you're a service operation requiring organized parts storage across maximum cargo capacity, a contractor needing flexible shelving in an extended mobile workshop without floor obstructions, a commercial fleet manager standardizing configurations across extended Sprinter vehicles, a specialty business that chose 170" wheelbase specifically for cargo volume and needs organization to match that capacity, or any professional seeking organized efficiency in maximum-length vans while preserving floor space and structural integrity, the WEATHER GUARD Extended-Length Folding Shelf Mounting Rails deliver the essential foundation. The combination of extended 102" rails engineered specifically for 170" wheelbase Sprinters, no-drill installation using existing mounting points, extruded aluminum construction providing proper weight distribution across extended lengths, flexible mounting location accommodating varied workflows, and USA manufacturing backed by Limited Lifetime Warranty makes this mounting rail system the intelligent choice for professional extended van upfitting. This represents the critical foundation for transforming your maximum-capacity Sprinter into an organized, efficient mobile workspace—providing the secure structural system that makes flexible folding shelf storage possible across the full extended length while preserving your vehicle's value, floor space, and integrity.
Terms to Know
- 170" Wheelbase: The extended-length Mercedes Sprinter configuration providing maximum cargo capacity—wheelbase is the distance between front and rear axles, with 170" being the longest standard option.
- 170" Extended Wheelbase: An even longer Sprinter variant offering absolute maximum interior cargo length—the ultimate capacity configuration for operations requiring the most space.
- Mounting Rails: Structural tracks or channels that attach to vehicle walls and provide the attachment points and support structure for shelving or storage systems.
- Folding Shelf: A shelf system that folds or pivots up against the van wall when not needed, creating floor space, then folds down to create enclosed storage compartments when needed.
- Extruded Aluminum: Aluminum shaped by forcing heated metal through a die to create a specific cross-sectional profile—produces consistent, precision parts with excellent strength-to-weight ratio.
- Reinforced Mounting Points: Specific locations in vehicle structure engineered with extra material or strengthening to safely accommodate accessory mounting loads without deformation.
- Weight Distribution: Engineering principle of spreading loads across multiple attachment points rather than concentrating force at single locations—prevents damage and improves stability, especially critical in extended-length applications.
- No-Drill Installation: Mounting method using existing factory holes rather than drilling new ones—preserves vehicle integrity, sealing, and resale value.
- Standard Roof vs. High Roof: Sprinter vans are available in standard roof height or high roof (providing standing height inside)—both compatible with these extended-length rails.
- Upfitting: The process of customizing or equipping a commercial vehicle with racks, shelving, storage, or specialized equipment for specific work applications.
- Cargo Capacity: The total interior volume available for storing and transporting goods—extended wheelbase vans maximize this critical specification.
