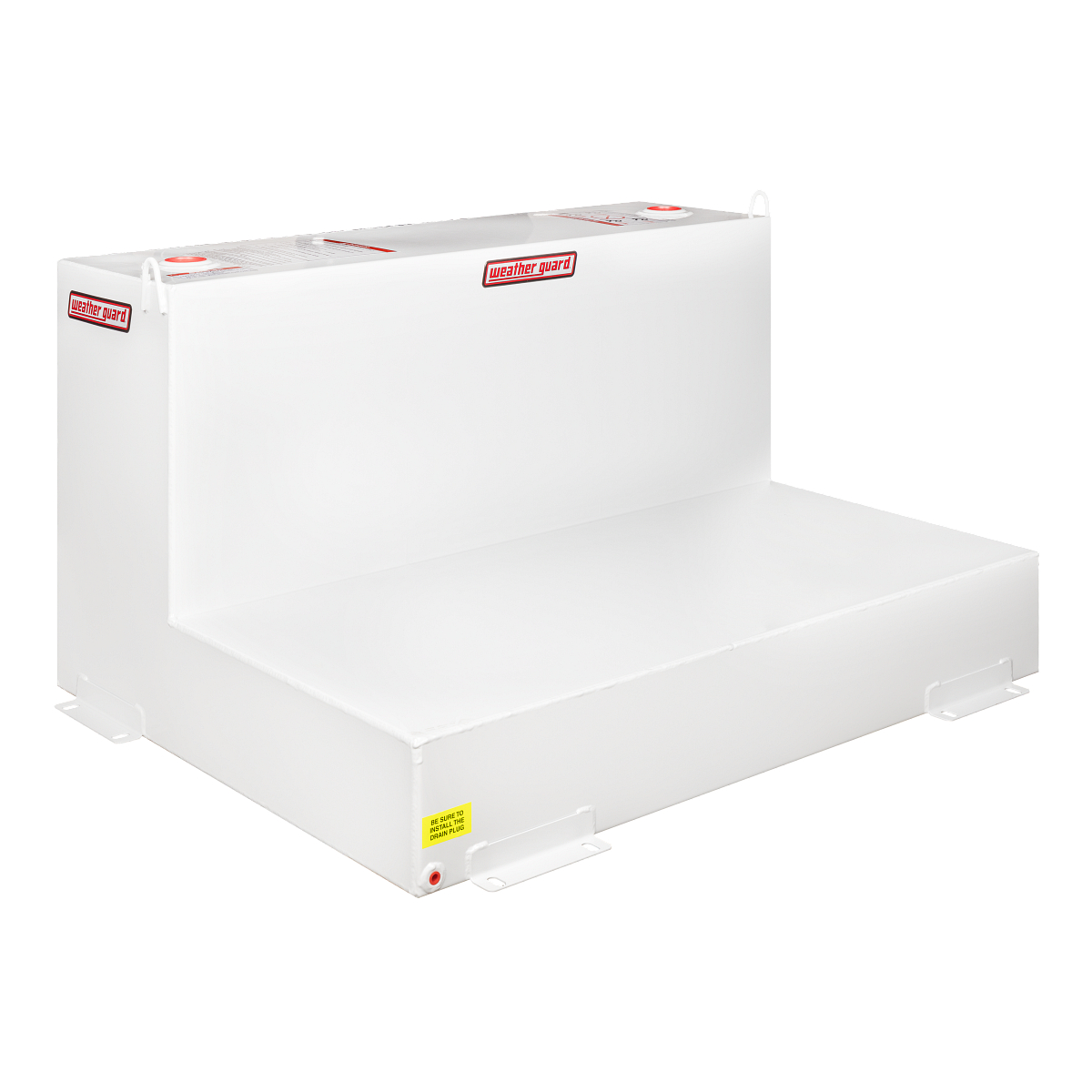

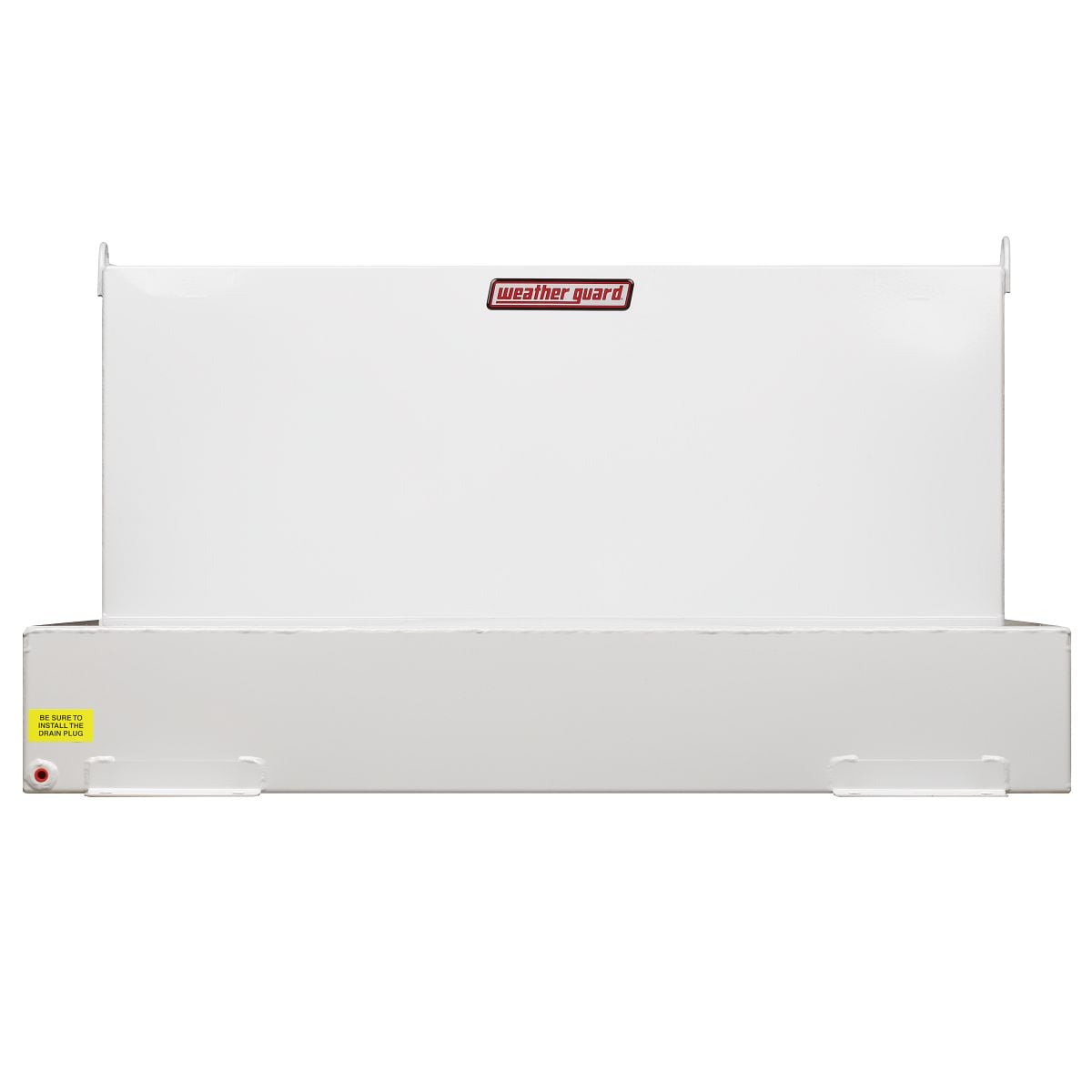

When your operation demands maximum fuel capacity, the WEATHER GUARD Model 362-3-02 Steel Transfer Tank delivers with an exceptional 110-gallon capacity—the largest in the WEATHER GUARD lineup. This automotive accessory provides more than double the capacity of standard 50-gallon tanks, dramatically reducing refueling trips and keeping your operation running efficiently. The L-shaped design integrates seamlessly with WEATHER GUARD Gull Wing Boxes and Saddle Boxes in full-size pickup trucks, allowing you to maintain tool storage while gaining maximum fuel transport capability. For large-scale contractors, landscaping operations, agricultural businesses, equipment rental companies, and commercial fleets with extensive fuel consumption needs, this 110-gallon capacity represents the ultimate solution for diesel fuel and hydraulic fluid transport.
110-Gallon Capacity: Maximum Volume, Maximum Efficiency
The 110-gallon capacity represents the absolute maximum available in truck-mounted fuel transport. This ultimate volume means operations that previously required daily refueling can now run for three to five full days from a single fill. The result: fewer interruptions to productive work, reduced fuel transportation costs, less vehicle wear from constant fuel runs, maximum bulk fuel pricing advantages, and complete elimination of fuel availability as a constraint on your operations.
For large landscaping operations running multiple crews and equipment fleets, this capacity supports an entire week of intensive work. Construction companies operating excavators, loaders, and generators on remote sites gain the fuel security to complete extended projects without interruption. Agricultural operations servicing tractors and implements across vast properties get the range needed for time-sensitive planting or harvest seasons.
The L-shaped configuration wraps around your existing WEATHER GUARD toolbox setup, allowing both tool storage and maximum fuel capacity to coexist. At approximately 49" long, 37.625" wide, and 27" high, the tank maximizes fuel volume while fitting full-size truck bed dimensions.
Heavy-Duty 12-Gauge Steel Construction
The 110-gallon tank is constructed from heavy-duty 12-gauge steel panels—the same commercial-grade material used across the WEATHER GUARD lineup, engineered into the largest, most robust tank available. This represents purpose-built commercial equipment designed to safely transport 110 gallons of diesel or hydraulic fluid (over 770 pounds when full) across thousands of miles and years of intensive service.
The overlapping edge panel design provides superior corner support throughout the structure—critical for safely containing this exceptional volume under all operating conditions. Every structural element is engineered to handle both the static weight and the dynamic forces during acceleration, braking, and rough terrain.
Extensive interior baffles are positioned throughout the tank to minimize fluid motion during transport. With 110 gallons of liquid, proper baffling is essential for safe operation and vehicle handling. The comprehensive baffle system reduces stress on tank walls and welds, extends tank life, and contributes to stable vehicle handling even with partial loads.
Key Features
- 110-Gallon Ultimate Capacity: Maximum available fuel volume—more than double standard tanks for extended operational range
- L-Shape Toolbox Integration: Wraps around WEATHER GUARD Gull Wing and Saddle Boxes for combined fuel capacity and tool storage
- Heavy-Duty 12-Gauge Steel: Commercial-grade construction with overlapping edges and comprehensive interior baffles
- Professional Brite White Finish: ARMOR TUF powder coat provides corrosion protection and clean, professional appearance
Safety and Operational Features

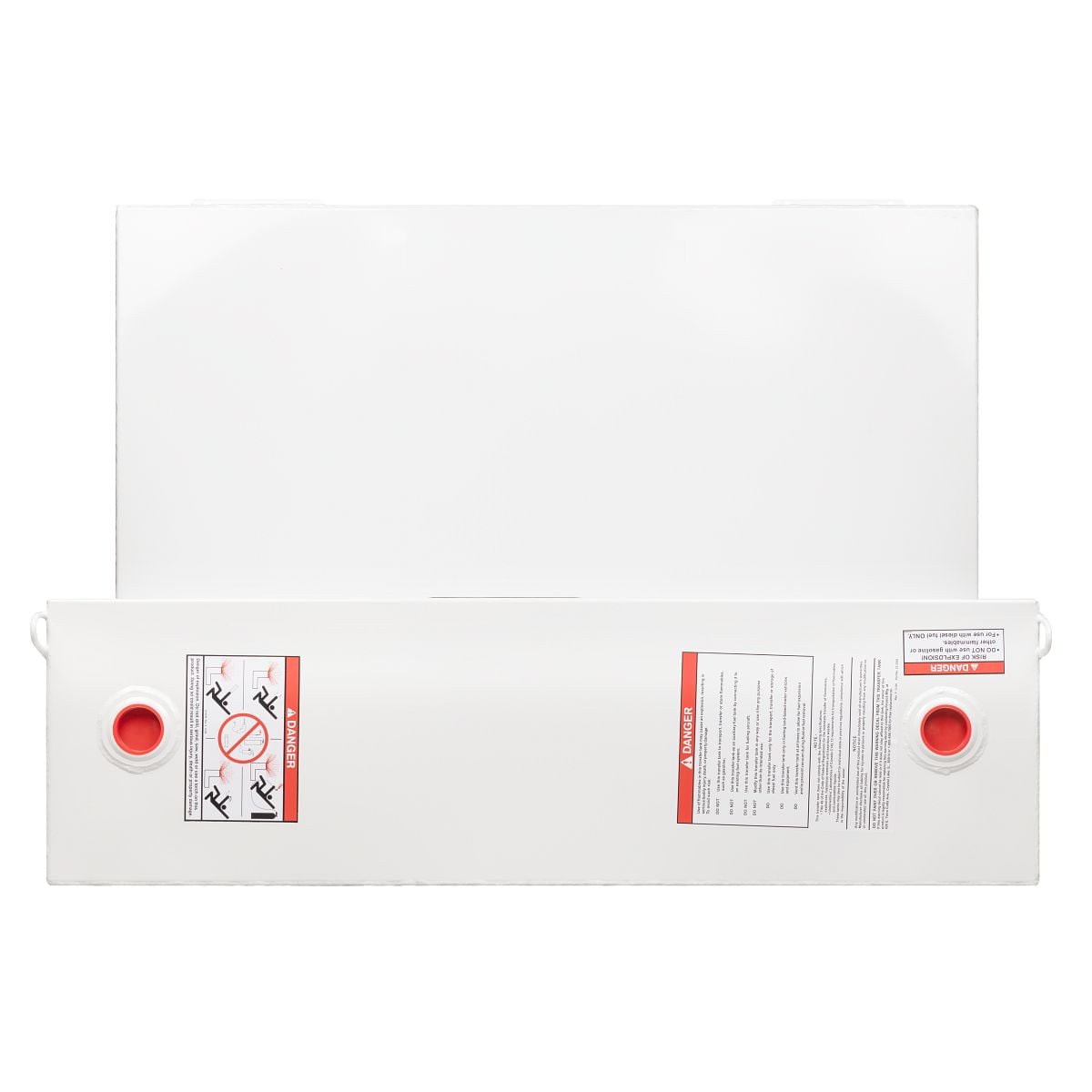

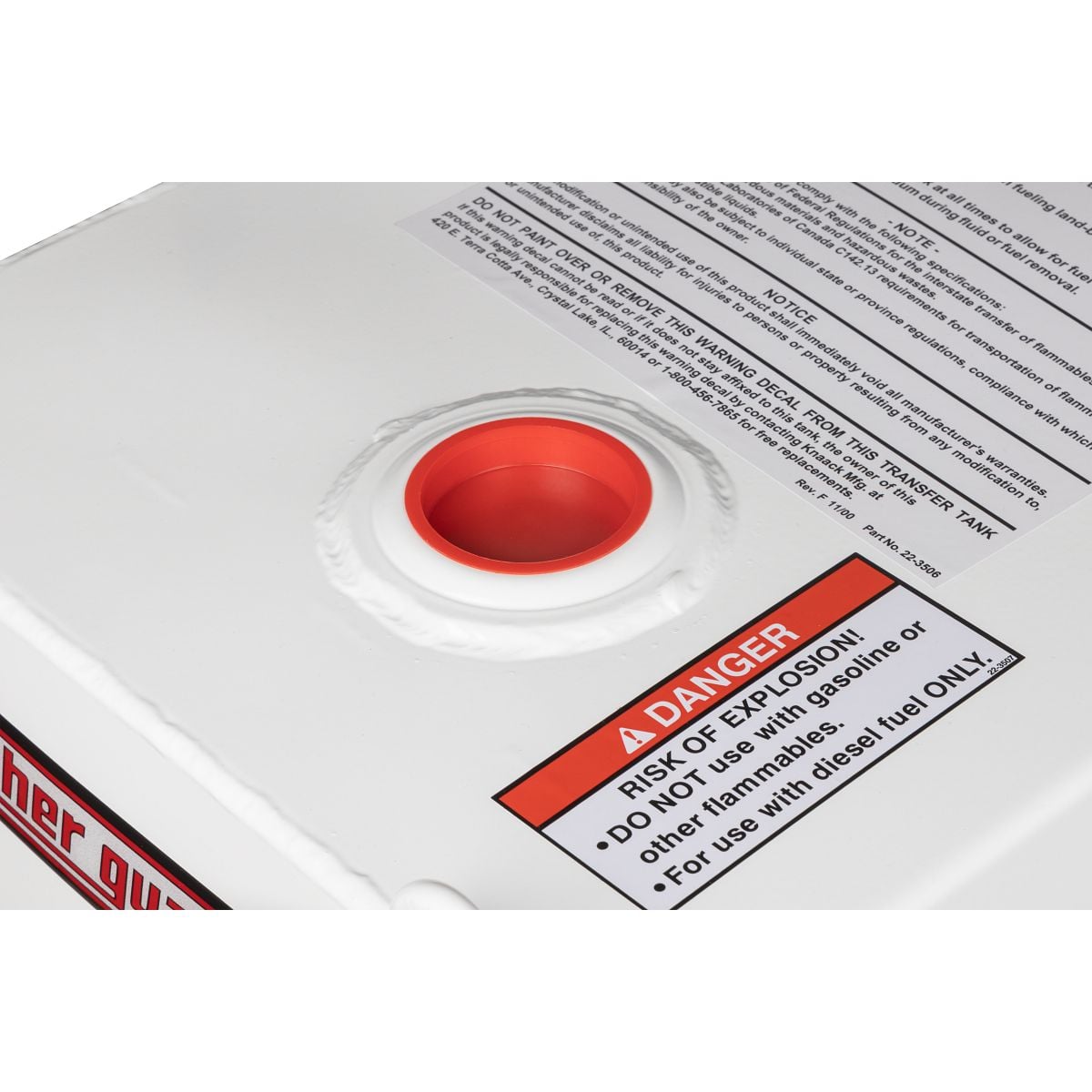

The vented filler cap prevents dangerous pressure build-up as temperatures fluctuate—critical with this volume where thermal expansion is most significant. The lockable cap provides security for your fuel investment (110 gallons often represents $350-450 or more).
Rubber isolation bushings absorb road vibration and protect the tank structure. With the tank weighing 220 pounds empty and approaching 1,000 pounds full, these bushings are essential for preventing vibration-induced fatigue and extending service life.
The reinforced filler neck withstands extended filling operations (15-25 minutes for 110 gallons). The 2" standard NPT connection accommodates most commercial pumps, including high-flow models for efficient filling.

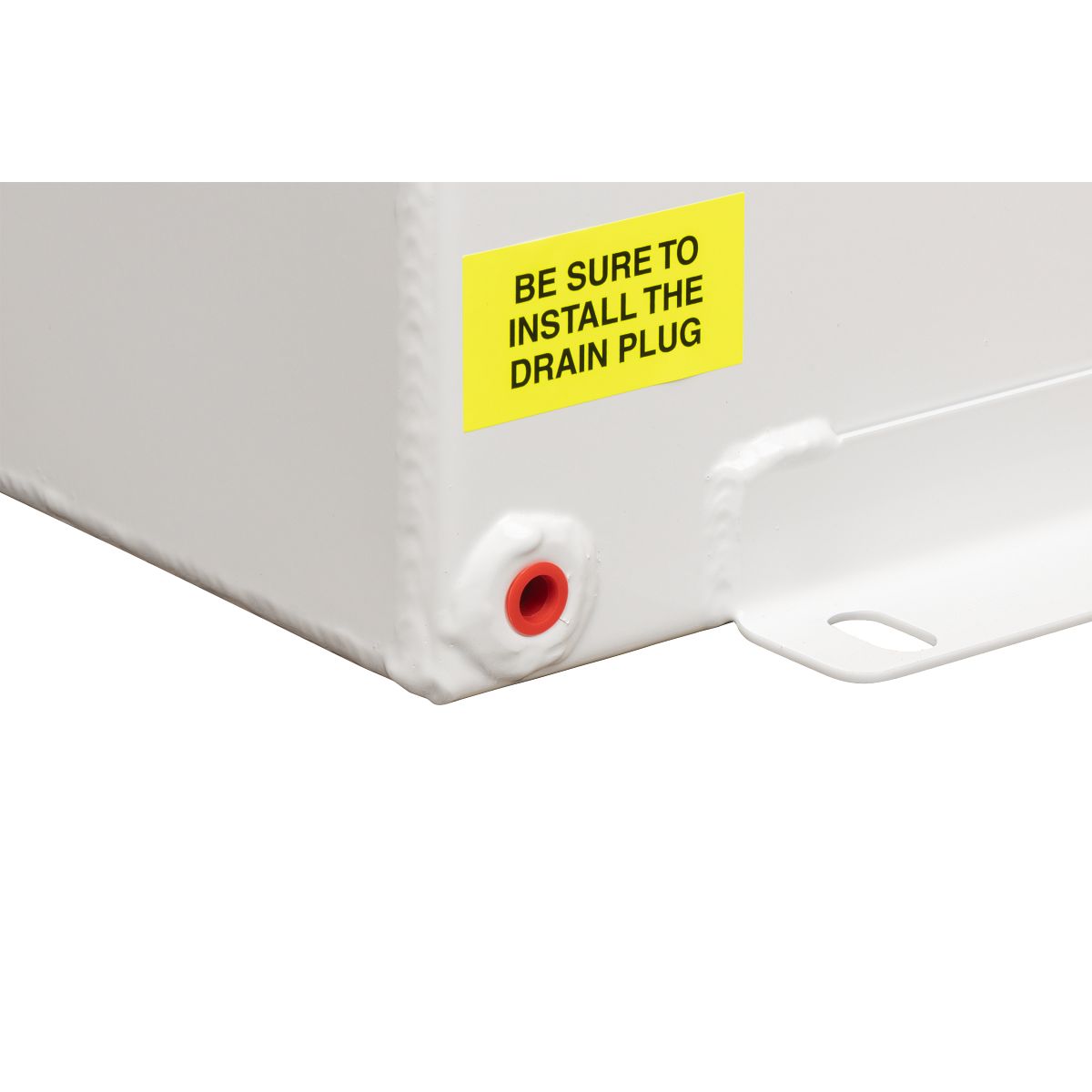

The 3/8" drain port enables routine maintenance and complete drainage—important for maintaining fuel quality and tank condition with this large volume.
Professional Finish and Quality
The Brite White ARMOR TUF powder coat finish provides commercial-grade protection against moisture, road salt, chemicals, and UV exposure. The bright white color maintains professional appearance, improves visibility for safety, reveals maintenance needs during inspections, and reflects sunlight to help stabilize fuel temperatures.
The Limited Lifetime Warranty demonstrates WEATHER GUARD's confidence in construction quality. USA manufacturing ensures quality control standards that meet the demanding needs of commercial operators who depend on their equipment daily.
Important Usage Guidelines
WEATHER GUARD Transfer Tanks are designed exclusively for non-flammable fluids such as diesel fuel and hydraulic oil. These tanks are NOT approved for gasoline or other flammable fluids—using them for such purposes is dangerous, illegal, and voids all warranties.
These are standalone transport solutions—NOT designed to connect to vehicle primary fuel systems. They're intended for transporting fuel to equipment, generators, or machinery at job sites, or storing hydraulic fluid for maintenance operations.
Product Specifications
- Style: L-Shape Transfer Tank
- Tank Capacity: 110 gallons
- Material: 12-Gauge Steel
- Color: Brite White
- Finish: ARMOR TUF Powder Coat
- Compatible Fluids: Diesel Fuel, Hydraulic Fluid (Non-Flammable Only)

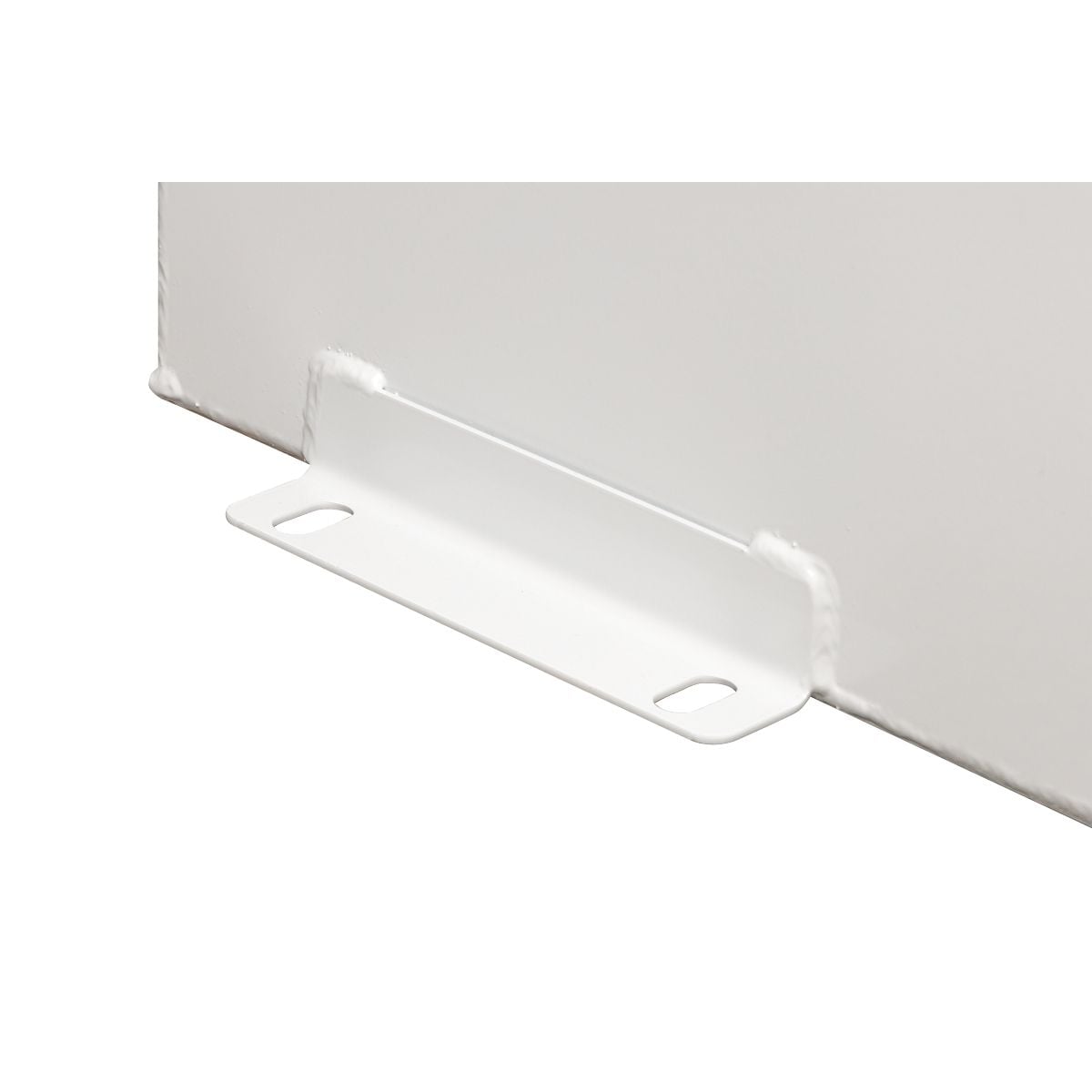

- Mounting Method: Steel Bed Plate
- Filler Opening: 2" Standard NPT
- Drain Port: 3/8"
- Warranty: Limited Lifetime
- Country of Origin: USA

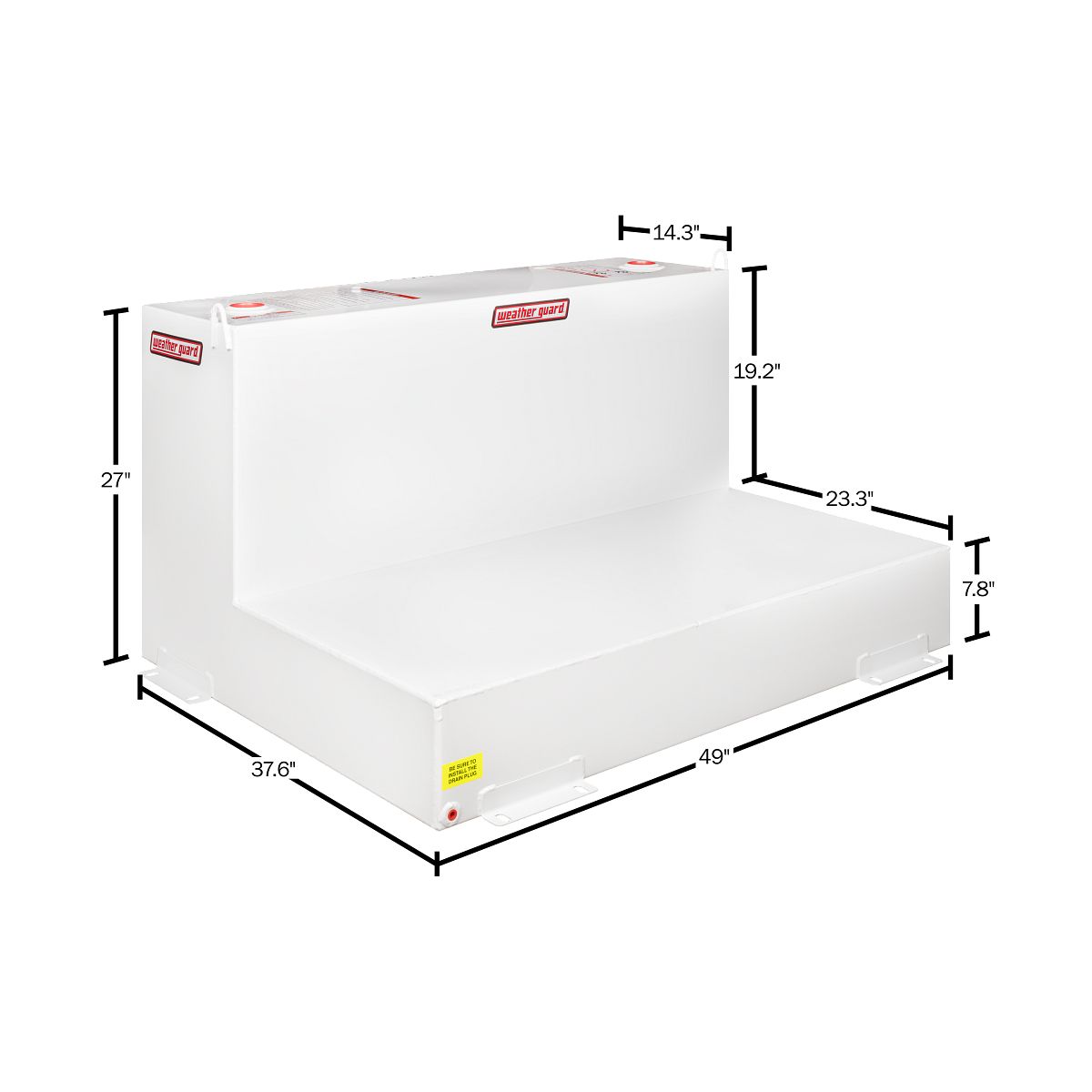

Dimensions:
- Length: 49"
- Width: 37.625"
- Height: 27"
- Weight: 220 lbs (empty); 990+ lbs (full with diesel)
Key Safety Features:
- Vented lockable filler cap
- Comprehensive interior baffles
- Rubber isolation bushings
- Reinforced filler neck
- 3/8" drain port
- 12-gauge steel construction
- Overlapping edge panel design
Compatibility:
- Full-size pickup trucks with appropriate payload capacity
- Integrates with WEATHER GUARD Gull Wing Boxes
- Integrates with WEATHER GUARD Saddle Boxes
- 2" NPT accommodates most commercial pumps
Ultimate Capacity for Demanding Operations
Whether you're running large-scale landscaping operations, major construction projects, substantial agricultural businesses, equipment rental operations, commercial fleets, or mobile fueling services, the WEATHER GUARD 110-Gallon L-Shape Transfer Tank delivers the ultimate capacity, commercial-grade construction, comprehensive safety features, and professional appearance that high-demand operations require. The combination of 110-gallon capacity, L-shape design, heavy-duty steel construction, professional finish, and Limited Lifetime Warranty makes this the intelligent choice for operations where maximum fuel capacity directly impacts operational efficiency and profitability.
Terms to Know
- Transfer Tank: An auxiliary fuel storage tank for transporting and dispensing fuel to equipment rather than serving as vehicle fuel capacity.
- L-Shape Configuration: A tank design that wraps around existing toolboxes to maximize fuel capacity while preserving tool storage.
- 12-Gauge Steel: Steel approximately 0.105" thick—heavy-duty material for commercial applications.
- Interior Baffles: Internal dividers that reduce fluid sloshing during transport—critical in large-capacity tanks.
- NPT (National Pipe Thread): U.S. standard for threaded pipe fittings ensuring pump compatibility.
- Vented Filler Cap: A cap allowing controlled air exchange to prevent pressure buildup while preventing spillage.
- Powder Coat Finish: Durable electrostatically-applied coating superior to liquid paint.
- Non-Flammable Fluids: High flash-point liquids like diesel and hydraulic oil that are safer to transport than gasoline.
- Gull Wing Box/Saddle Box: Truck toolbox styles; Gull Wing boxes open upward from center, Saddle Boxes sit over wheel wells.
